ANTENNA COAXIAL CABLE
(7) RF LOW LOSS PE JACKET SERIES

50 [ LOW LOSS TYPE COAXIAL CABLE (RF SERIES)



KEY FEATURE:

  • INSULATED BY HIGH PRESSURE, GAS INJECTED FOAMED DIELECTRIC.
  • PROVIDE SUPPER LOW ATTENUATION LOSS IN WIDER FREQUENCY RANGE.
  • MAINTAIN LOW LOSS AND STABLE VSWR IN HIGH FREQUENCY AGAINST AGING.
  • SUITABLE FOR RADIO TRANSMISSION, AMATEUR RADIO AND BASE RADIO ANTENNA STATION.



ALL GAS-INJECTED FOAM PE

(PART NO.) CONDUCTOR
AWG(MM)
INSULATION
NOMINAL
O.D.
MM
JACKET
NOMINAL
O.D.
MM
SHIELD
MATERIAL
&
COVERAGE
NOM
IMP.
OHM
NOM
VEL.
PROP.
NOMINAL
CAPACITANCE
PF/M
NOMINAL
ATTENUATION
MHZ DB/100M

RG-213/U

7/0.752MM
STRANDED
BARE
COPPER
WIRE

7.24MM
SOLID
POLYTHYLENE

10.3MM
BLACK
NC-PVC

97%
BARE
COPPER
WIRE
BRAID

50

67%

101

50 4.5
100 6.3
200 9.0
400 13.5
700 21.5
900 25.1
1000 26.8

.100"
(RF100)

0.46MM
COPPER
COVERED
STEEL

1.52MM
SOLID
POLYTHYLENE

2.80MM
BLACK
PVC

BONDED
ALUMINUM
FOIL+
95% TINNED
COPPER
BRAID

50

67%

101

50 18.0
100 28.0
200 36.8
400 52.8
900 81.2
1000 88.0
1500 108.0
2000 120.0

.195"
(RF195)

0.94MM
SOLID
BARE
COPPER
WIRE

2.79MM
GAS
INJECTED
FOAM PE

4.95MM
BLACK
PE

BONDED
ALUMINUM
FOIL+
95% TINNED
COPPER
BRAID

50

82%

80

50 8.4
100 11.5
200 17.1
400 23.0
900 36.0
1000 38.5
1500 47.7
2000 55.4

.200"
(RF200)

1.12MM
SOLID
BARE
COPPER
WIRE

2.95MM
GAS
INJECTED
FOAM PE

4.95MM
BLACK
PVC

BONDED
ALUMINUM
FOIL+
95% TINNED
COPPER
BRAID

50

83%

80

50 7.4
100 12.5
200 15.8
400 22.6
900 31.2
1000 33.1
1500 41.1
2000 48.0

.240"
(RF240)
(LMR240)

1.42MM
SOLID
BARE
COPPER
WIRE

3.81MM
GAS
INJECTED
FOAM PE

3.81MM
BLACK
PE

BONDED
ALUMINUM
FOIL+
95% TINNED
COPPER
BRAID

50

83%

80

50 5.9
100 7.1
200 11.2
400 16.9
900 24.9
1000 26.8
1500 33.4
2000 39.2

.400"
(RF400)
(LMR400)

2.74MM
SOLID
COPPER
CLAD
ALUMINUM

7.24MM
GAS
INJECTED
FOAM PE

10.3MM
BLACK
PE

BONDED
ALUMINUM
FOIL+
85% TINNED
COPPER
BRAID

50

85%

80

50 2.9
100 3.9
200 5.7
400 7.5
900 13.0
1000 13.6
1500 17.0
2000 20.1

.500"
(M500)
(RF500)

3.60MM
SOLID
COPPER
CLAD
ALUMINUM

9.40MM
GAS
INJECTED
FOAM PE

12.70MM
BLACK
PE

BONDED
ALUMINUM
FOIL+
85% TINNED
COPPER

50

85%

78

50 3.5
100 4.1
200 5.3
400 7.2
900 11.0
1000 11.5
1500 14.1
2000 16.3

1.5D-2V

7/0.18MM
STRANDED
BARE
COPPER

1.6MM
SOLID
POLYTHYLENE

2.9MM
BLACK
PVC

95%
BARE
COPPER
BRAID

50

67%

104

200 4.1
900 86.3
1000 92.5
1500 114.0
2000 133.0

3D-2V
(URM76)
(U.K.)

7/0.32MM
STRANDED
BARE
COPPER

3.00MM
SOLID
POLYTHYLENE

5.00MM
BLACK
PVC

95%
BARE
COPPER
BRAID

50

67%

100

50

10.5

100

14.1

200

21.8

400

31.5

700

42.0

900

47.0

1000

50.0

2000

74.9



(PART NO.) CONDUCTOR
AWG(MM)
INSULATION
NOMINAL
O.D.
MM
JACKET
NOMINAL
O.D.
MM
SHIELD
MATERIAL
&
COVERAGE
NOM
IMP.
OHM
NOM
VEL.
PROP.
NOMINAL
CAPACITANCE
PF/M
NOMINAL
ATTENUATION
MHZ DB/100M

3D-FB

1.00MM
SOLID
BARE
COPPER

2.90MM
GAS
INJECTED
FOAM PE

5.0MM
BLACK
PVC

DOUBLE SIDE
ALUMINUM
FOIL+
85% TINNED
COPPER
BRAID

50

82

83

50

8.0

100

10.5

200

14.6

400

20.9

900

32.2

1000

34.1

1500

42.3

2000

49.7

5D-FB

1.80MM
SOLID
BARE
COPPER

5.0MM
GAS
INJECTED
FOAM PE

7.4MM
BLACK
PVC

DOUBLE SIDE
ALUMINUM
FOIL+
85% TINNED
COPPER
BRAID

50

82%

83

50 4.9
100 6.5
200 9.0
400 13.0
900 20.5
1000 21.7
1500 27.4
2000 32.3

8D-FB

2.90MM
SOLID
BARE
COPPER

8.0MM
GAS
INJECTED
FOAM PE

11.10MM
BLACK
PVC

DOUBLE SIDE
ALUMINUM
FOIL+
85% TINNED
COPPER
BRAID

50

82%

83

50 3.0
100 4.1
200 5.6
400 8.3
900 13.0
1000 13.7
1500 18.3
2000 22.3

10D-FB

3.50MM
SOLID
BARE
COPPER

9.7MM
GAS
INJECTED
FOAM PE

13.10MM
BLACK
PVC

DOUBLE SIDE
ALUMINUM
FOIL+
85% TINNED
COPPER
BRAID

50

82%

83

50 2.6
100 3.5
200 4.8
400 7.2
900 11.4
1000 12.0
1500 15.2
2000 18.3

RG-214/U

7/0.752MM
SILVER
COATED
COPPER

7.24MM
SOLID
POLYTHYLENE

10.8MM
BLACK
NC-PVC

97% SILVER
COATED
COPPER
DOUBLE
BRAID

50

67%

100

50 4.5
100 6.5
200 9.0
400 13.5
700 21.5
900 25.0
1000 26.3

RG-8/U

7/0.724MM
STRANDED
BARE
COPPER

7.24MM
SOLID
POLYTHYLENE

10.30MM
BLACK
PVC

95%
BARE
COPPER
BRAID

52

67%

97

50 4.5
100 6.5
200 8.9
400 13.5
700 21.5
900 25.0
1000 26.3

RG-58C/U

19/0.18MM
STRANDED
TINNED
COPPER

2.95MM
SOLID
POLYTHYLENE

4.95MM
BLACK
NC-PVC

95%
TINNED
COPPER
BRAID

50

67%

101

50 10.9
100 16.4
200 24.0
400 37.9
700 55.6
900 65.8
1000 70.7

RG-58A/U

19/0.203MM
STRANDED
TINNED
COPPER

2.90MM
FOAMED
POLYTHYLENE

5.00MM
BLACK
PE

ALUMINUM
FOIL+95%
TINNED
COPPER

50

82%

85

50 9.5
100 13.2
200 18.8
400 31.5
700 44.5
900 50.8
1000 52.2

RG-8X

19/0.287MM
STRANDED
BARE
COPPER

3.94MM
FOAMED
POLYTHYLENE

6.15MM
WHITE
PVC

95%
BARE
COPPER
BRAID

50

78%

85

50 8.5
100 12.2
200 17.8
400 26.5
700 36.8
900 42.1
1000 44.5

RG-174/U

70.16MM
COPPER
COVERED
STEEL

1.52MM
SOLID
POLYTHYLENE

2.80MM
BLACK
PVC

95% TINNED
COPPER
BRAID

50

67%

101

50

19.5

100

27.8

200

41.5

400

62.5

700

88.8

900

101.1

1000

109.8

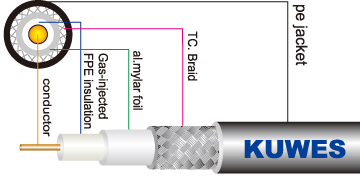

KS-8019 H155 SUPER LOW COAXIAL

H155 SUPER LOW LOSS COAXIAL
19/0.287MM BC + GAS-INJECTED FOAM PE
+ D.F.ALUM.FOIL
+ 16 X 8 / 0.12 TC BRAID
+ BLACK PE JACKET 5.5MM
ATTENUATION : 50DB≤100M AT 2.4GHZ

50 OHM

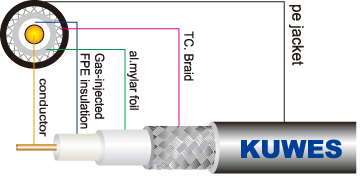

KS-8021 LMR400 SUPER LOW LOSS COAXIAL
1/2.74MM COPPER CLAD ALUM.
+ GAS-INJECTED FOAM PE + D.F. ALUM. FOIL
+ 24 X 7 / 0.16MM TC BRAID
+ BLACK PE JACKET 10.3MM
50 OHM

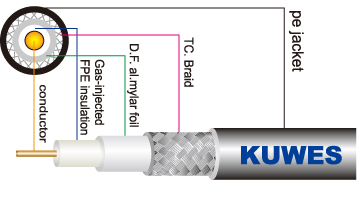

KS-8022 H1000 SUPER LOW LOSS COAXIAL
1/2.6MM BC+ GAS-INJECTED FOAM PE
+ D.F. ALUM. MYLAR
+ 16 X 6 / 0.16MM BC BRAID
+ BLACK PE JACKET 10.3MM
ATTENUATION : 40DB≤100M AT 5.5GHZ
50 OHM

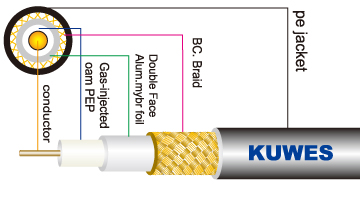

KS-8020 RF240 SUPER LOW LOSS COAXIAL
1/1.40MM BC +GAS-INJECTED FOAM PE
+ ALUM. FOIL
+ 16 X 8 / 0.12MM TC BRAID
+ BLACK PE JACKET 6.10MM
ATTENUATION : 70DB≤ 100MM AT 5.5GHZ
50 OHM
