ANTENNA COAXIAL CABLE
(3) 75 OHM & 50 OHM JIS SERIES

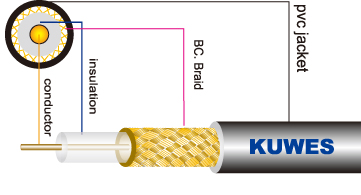

75 OHM JIS PE CABLE (UL1354, 1365, 1478, 1792)



PRODUCT DESCRIPTION:

  • SOLID OR STRANDED, COPPER OR COPPER COVERED STEEL CONDUCTOR.
  • PE OR CROSS_LINK PE INSULATION.
  • BARE COPPER BRAID SHIELD, 95% COVERAGE.
  • LOW LOSSES AND LOW PROPAGATION DELAYS, CROSSTALK KEPT TO MINIMUM.
  • PASSES VW-I VERTICAL FLAME TEST.

APPLICATIONS:

  • FOR INTERNAL WIRING OF TV, RADIO, RECEIVERS, VTR, TAPE RECORDERS, AND OTHER ELECTRONIC EQUIPMENT.

TYPE

CONDUCTOR INSULATION BRAID SHIELD JACKET

NOM.
IMPED.
OHM

NOM.
CAPA.
PF/M
ATTENUATION
100MHZ
DB/KM

NO./MM

MTRL

MM

MTRL

NO./CARR/MM

MTRL

MM

MTRL

1.5C-2V

1/0.26

CW

1.6

PE

5/16/0.10

C

2.9

PVC

75

69

393

1.5C-2VS

7/0.1

C

1.6

PE

5/16/0.10

C

2.9

PVC

75

69

405

2.5C-2V

1/0.4

C

2.4

PE

6/16/0.10

C

4.0

PVC

75

69

251

2.5C-2VS

7/0.14

C

2.4

PE

6/16/0.10

C

4.0

PVC

75

69

300

3C-2V

1/0.5

C

3.1

PE

5/24/0.12

C

5.4

PVC

75

67

194

3C-2VS

7/0.16

C

3.1

PE

5/24/0.12

C

5.4

PVC

75

67

229

3C-2W

1/0.5

C

3.1

PE

5/24/0.12

CC

6.5

PVC

75

67

194

5C-2V

7/0.16

C

4.9

PE

7/24/0.14

C

7.4

PVC

75

67

126

5C-2VS

1/0.5

C

4.9

PE

7/24/0.14

C

7.4

PVC

75

67

159

5C-2W

1/0.8

C

4.9

PE

7/24/0.14

CC

8.3

PVC

75

67

159

7C-2V

1/1.2

C

7.6

PE

8/24/0.18

C

10.5

PVC

75

67

106

7C-2VS

7/0.4

C

7.3

PE

8/24/0.18

C

10.4

PVC

75

67

106

10C-2V

1/1.4

C

9.0

PE

9/24/0.20

C

11.7

PVC

75

67

86

10C-2VS

7/0.5

C

9.2

PE

9/24/0.20

C

11.7

PVC

75

67

86

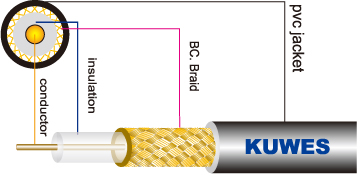

50 OHM JIS PE CABLE (UL1354, 1365, 1478, 1792)

@

PRODUCT DESCRIPTION:

  • SOLID OR STRANDED, COPPER OR COPPER COVERED STEEL CONDUCTOR.
  • PE OR CROSS-LINK PE INSULATION.
  • BARE COPPER BRAID SHIELD, 95% COVERAGE.
  • LOW LOSSES AND LOW PROPAGATION DELAYS, CROSSTALK KEPT TO MINIMUM.
  • PASSES VW-I VERTICAL FLAME TEST.

APPLICATIONS:

  • SUITABLE FOR HIGH FREQUENCY RADIO TRANSMISSION.

TYPE

CONDUCTOR INSULATION BRAID SHIELD JACKET

NOM.
IMPED.
OHM

NOM.
CAPA.
PF/M
ATTENUATION
100MHZ
DB/KM

NO./MM

MTRL

MM

MTRL

NO./CARR/MM

MTRL

MM

MTRL

0.8D-2V

1/0.26

CW

0.8

PE

5/16/0.08

C

2.0

PVC

50

102

-

1.5D-2V

7/0.18

C

1.6

PE

5/16/0.10

C

2.9

PVC

50

104

410

1.5D-2W

7/0.18

C

1.6

PE

6/16/0.10

C

3.4

PVC

50

100

410

2.5D-2V

1/0.8

C

2.7

PE

6/16/0.12

C

4.3

PVC

50

100

225

3D-2VS

7/0.32

C

3.0

PE

5/24/0.12

C

5.3

PVC

50

100

230

3D-2V

1/0.9

C

3.0

PE

5/24/0.12

C

5.3

PVC

50

100

200

3D-2W

7/0.32

C

3.0

PE

5/24/0.12

CC

6.4

PVC

50

100

230

5D-2V

1/1.4

C

4.8

PE

7/24/0.14

C

7.3

PVC

50

100

145

5D-2VS

7/0.5

C

4.8

PE

7/24/0.14

C

7.3

PVC

50

100

149

5D-2W

1/1.4

C

4.8

PE

7/24/0.14

CC

8.0

PVC

50

100

145

8D-2VS

7/0.8

C

7.8

PE

8/24/0.18

C

11.1

PVC

50

100

95

8D-2V

1/2.3

C

7.8

PE

8/24/0.18

C

11.1

PVC

50

100

88

10D-2V

1/2.9

C

9.7

PE

9/24/0.20

C

13.1

PVC

50

102

70

10D-2VS

7/1.0

C

9.7

PE

9/24/0.20

C

13.1

PVC

50

102

78


KS-8079 75 Ohm JIS CABLE
1.5C-2V : 1/0.26MM CCS + 1.6MM PE
               + 16 X 5 / 0.10 BC BRAID + 2.9MM PVC JACKET

2.5C-2V : 1/0.40MM BC + 2.4MM PE
               + 16 X 6 / 0.10 BC BRAID + 4.0MM PVC JACKET

3C-2V    : 1/0.50MM BC + 3.1MM PE
               + 24 X 5 / 0.12 BC BRAID + 5.4MM PVC JACKET

KS-8018 50 Ohm JIS CABLE
1.5D-2V : 7/0.18MM BC + 1.6MM PE
               + 16 X 5 / 0.10 BC BRAID + 2.9MM PVC JACKET

2.5D-2V : 1/0.80MM BC + 2.7MM PE
               + 16 X 6 / 0.12 BC BRAID + 4.3MM PVC JACKET

5D-2V    : 1/1.40MM BC + 4.8MM PE
               + 24 X 7 / 0.14 BC BRAID + 7.3MM PVC JACKET
