ANTENNA COAXIAL CABLE
(2) CATV, CCTV SERIES (UL1354) |
CATV CABLE (UL1354 CM, CL2, CATV)
PRODUCT DESCRIPTION:
- SOLID COPPER OR COPPER COVERED STEEL CONDUCTOR.
- GAS INJECTED FOAMED POLYETHYLENE INSULATION.
- BONDED ALUMINUM FOIL AND ALUMINUM WIRE BRAID SHIELD.
- RATED TEMP:60℃ . RATED VOLTAGE:300 VOLTS.
- PASSES VW-1 VERTICAL FLAME TEST.
APPLICATIONS:
- SUITABLE FOR CABLE TV SYSTEM, MATV SYSTEM,
SATELLITE RECEIVER RADIO ANTENNA, MONITOR SYSTEM.
CONSTRUCTION:
|
TYPE |
CONDUCTOR |
INSULATION |
BRAID SHIELD |
JACKET |
NOM.
IMPED.
OHM |
NOM.
CAPA.
PF/M |
ATTENUATION
100MHZ
DB/100M |
|
NO./MM |
MTRL |
MM |
MTRL |
NO./MM |
NO./MM |
MTRL |
MM |
MTRL |
|
CATV RG-59 |
1/0.81 |
C |
3.66 |
FPE |
HA |
53% |
AL |
6.15 |
PVC |
75 |
53 |
26.6 |
|
CATV RG-59 |
1/0.81 |
CW |
3.66 |
FPE |
HA |
53% |
AL |
6.15 |
PVC |
75 |
53 |
26.6 |
|
CATV RG-59 |
1/0.81 |
CW |
3.66 |
PE |
HA |
67% |
AL |
6.15 |
PVC |
75 |
53 |
26.6 |
|
CATV
RG-59+MESS |
1/0.81 |
CW |
3.66 |
FPE |
HA |
67% |
AL |
6.15X9.88 |
PVC |
75 |
53 |
26.6 |
|
MESSENGERED - 1.3MM GAVANIZED STEEL MESSENGER |
|
CATV RG-59 |
1/0.81 |
CW |
3.66 |
FPE |
HA |
95% |
AL |
6.15 |
PVC |
75 |
53 |
21.5 |
|
CATV RG-6 |
1/1.02 |
C |
4.57 |
FPE |
HA |
61% |
AL |
6.99 |
PVC |
75 |
53 |
21.5 |
|
CATV RG-6
CATV
RG-6+MESS |
1/1.02
1/1.02 |
CW
CW |
4.57
4.57 |
FPE
FPE |
HA
HA |
61%
61% |
AL
AL |
6.99
6.99X10.57 |
PVC
PVC |
75
75 |
53
53 |
21.5
21.5 |
|
MESSENGERED - 1.3MM GAVANIZED STEEL MESSENGER |
|
CATV RG-6 |
1/1.02 |
CW |
4.57 |
FPE |
HA |
90% |
AL |
6.99 |
PVC |
75 |
53 |
21.5 |
|
CATV
RG-6+MESS |
1/1.02 |
CW |
4.57 |
FPE |
HA |
90% |
AL |
6.99X10.57 |
PVC |
75 |
53 |
21.5 |
|
MESSENGERED - 1.3MM GAVANIZED STEEL MESSENGER |
|
CATV RG-6 |
1/1.02 |
CW |
4.57 |
FPE |
HA |
60%DF+40% |
AL |
7.49 |
PVC |
75 |
53 |
21.5 |
|
CATV RG-11 |
1/1.63 |
C |
7.24 |
FPE |
HA |
61% |
AL |
10.29 |
PVC |
75 |
53 |
14.5 |
|
CATV RG-11 |
1/1.63 |
CW |
7.24 |
FPE |
HA |
61% |
AL |
10.29 |
PVC |
75 |
53 |
14.5 |
|
CATV RG-11 |
1/1.63 |
CW |
7.24 |
FPE |
HA |
60%DF+40% |
AL |
10.72 |
PVC |
75 |
53 |
14.5 |
|
SPEC. MAY CHANGED WITHOUT NOTICE
|

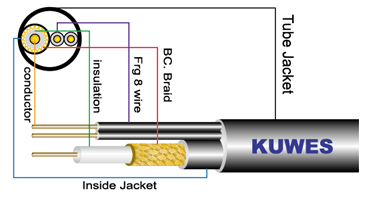

| KS-8023 CATV CABLE RG-59/U+FIG8 |
1/0.6MM BC + FOAM PE
+ 80 / 0.14 BC BRAID
+BLACK PVC JACKET
POWER : FIG 8 24 / 0.20 MM BC X 2F
TOTAL TUBE JACKET |
| 75 OHM |
|
|
|

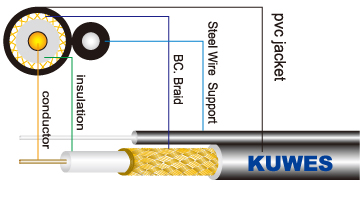

| KS-8028 CATV CABLE WITH MESSENGER |
|
MESSAGER (SELF-SUPPORT)
TYPE 1 : RG-6/U DUAL + 1.3MM STEEL WIRE
TYPE 2 : RG-6/U QUAD + 1.3MM STEEL WIRE
TYPE 3 : RG-59/U + 1.3MM STEEL WIRE
TYPE 4 : RG-11/U DUAL + 1.3MM STEEL WIRE |
| 75 OHM |
|
|
|
|
|
