ANTENNA COAXIAL CABLE
(4) 50 & 75 OHM JIS LOW LOSS FOAMED PE SERIES |
50 & 75 OHM LOW LOSS JIS FOAMED CABLE
PRODUCT DESCRIPTION:
- SOLID ANNEALED COPPER CONDUCTOR.
- FOAMED POLYTHYLENE INSULATION.
- DOUBLE SIDES ALUMINUM FOIL AND TINNED COPPER SHIELD, 100% COVERAGE.
- EXCELLENT PERFORMANCE IN HIGH FREQUENCY, LOW SIGNAL, VSWR STABILITY.
APPLICATIONS:
- 50 OHM CABLE SUITABLE FOR RADIO TRANSMISSION, AMATEUR RADIO AND BASE RADIO ANTENNA STATION.
- 75 OHM CABLE SUITABLE FOR TV SYSTEM OR SATELLITE RECEIVER.

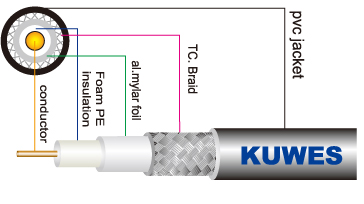

CONSTRUCTION:
|
 |
| TYPE |
CONDUCTOR |
INSULATION |
BRAID SHIELD |
JACKET |
NOM.
IMPED.
OHM |
NOM.
CAPA.
PF/M |
ATTENUATION
100MHZ
DB/100M |
|
NO./MM |
MTRL |
MM |
MTRL |
NO./MM |
NO./MM |
MTRL |
MM |
MTRL |
|
3D-FB |
1/1.0 |
C |
2.9 |
FPE |
DF |
95% |
T |
5.3 |
PVC |
50 |
83 |
410 |
|
5D-FB |
1/1.8 |
C |
5.0 |
FPE |
DF |
95% |
T |
7.4 |
PVC |
50 |
83 |
211 |
|
8D-FB |
1/2.6 |
C |
7.5 |
FPE |
DF |
95% |
T |
11.1 |
PVC |
50 |
83 |
147 |
|
10D-FB |
1/3.5 |
C |
9.7 |
FPE |
DF |
95% |
T |
13.1 |
PVC |
50 |
83 |
121 |
|
12D-FB |
1/4.2 |
C |
12.0 |
FPE |
DF |
95% |
T |
15.6 |
PVC |
50 |
83 |
96 |
|
4C-FB |
1/0.8 |
C |
3.70 |
FPE |
DF |
95% |
T |
6.0 |
PVC |
75 |
55 |
330 |
|
5C-FB |
1/1.05 |
C |
5.0 |
FPE |
DF |
95% |
T |
7.7 |
PVC |
75 |
55 |
210 |
|
7C-FB |
1/1.5 |
C |
7.3 |
FPE |
DF |
95% |
T |
10.2 |
PVC |
75 |
55 |
170 |
|
10C-FB |
1/2.0 |
C |
9.5 |
FPE |
DF |
95% |
T |
12.7 |
PVC |
75 |
55 |
130 |
|
5C-FBE |
1/1.05 |
C |
5.0 |
FPE |
DF |
95% |
T |
7.7 |
PE |
75 |
55 |
210 |
|
7C-FBE |
1/1.5 |
C |
7.3 |
FPE |
DF |
95% |
T |
10.2 |
PE |
75 |
55 |
170 |
|
10C-FBE |
1/2.0 |
C |
9.5 |
FPE |
DF |
95% |
T |
12.7 |
PE |
75 |
55 |
130 |
| SPEC. MAY CHANGED WITHOUT NOTICE
|
| KS-8039 50 & 75 Ohm JIS FOAMED CABLE |
5D-FB : 1/1.8MM BC + 5.0MM FOAM PE
+ ALUM.FOIL + 95% TC BRAID + 7.4MM PVC JACKET
8D-FB : 1/2.6MM BC + 7.5MM FOAM PE
+ ALUM.FOIL + 95% TC BRAID + 11.1MM PVC JACCKET
10D-FB : 1/3.5MM BC + 9.7MM FOAM PE
+ ALUM.FOIL + 95% TC BRAID + 13.1MM PVC JACCKET |
|
|
|
|
|
|
