MICROPHONE / AUDIO & VIDEO / SHIELDED WIRE
(1) MONO & STEREO MICROPHONE CABLE SERIES |
MICROPHONE / AUDIO & VIDEO / SHIELDED WIRE
MONO & STEREO MICROPHONE CABLE SERIES
MONO/STEREO
MICROPHONE CABLE
MONO SPIRAL SHIELD |
STEREO SPIRAL SHIELD |
CONDUCTOR
MM/NO. |
SPIRAL SHIELD
MM/NO. |
PVC
JACKET
MM |
| 0.10MMX10 |
0.10MMX20 |
2.5MM |
| 0.10MMX10 |
0.10MMX20 |
3.0MM |
| 0.10MMX10 |
0.10MMX20 |
3.5MM |
| 0.12MMX20 |
0.12MMX30 |
4.0MM |
| 0.12MMX20 |
0.12MMX30 |
5.0MM |
| 0.12MMX20 |
0.12MMX30 |
5.5MM |
| 0.12MMX20 |
0.12MMX30 |
6.0MM |
| 0.12MMX20 |
0.12MMX30 |
6.5MM |
| 0.12MMX20 |
0.12MMX30 |
7.0MM |
|
CONDUCTOR
MM/NO. |
SHIELD
SPIRALED
OFC WIRE
MM/NO. |
FLEXIBLE
PVC
JACKET
OD.:MM |
| 0.10MMX10 |
0.10MMX20 |
2.5MM |
| 0.10MMX10 |
0.10MMX20 |
3.0MM |
| 0.10MMX10 |
0.10MMX20 |
3.5MM |
| 0.12MMX20 |
0.12MMX30 |
4.0MM |
| 0.12MMX20 |
0.12MMX30 |
5.0MM |
| 0.12MMX20 |
0.12MMX30 |
5.5MM |
| 0.12MMX20 |
0.12MMX30 |
6.0MM |
| 0.12MMX20 |
0.12MMX30 |
6.5MM |
| 0.12MMX20 |
0.12MMX30 |
7.0MM |
|
STEREO BRAID SHIELD
| CONDUCTOR |
CONDUCTOR |
INSULATION |
BRAID SHIELD |
JACKET |
| AWG |
NO./MM |
NO. OF |
MM |
¡@ |
OVERALL DIA. |
| 26 |
10/0.12 |
1 |
PE 2.1 |
40/0.12 |
6.0MM |
| 22 |
16/0.16 |
1 |
PE 2.1 |
69/0.12 |
6.0MM |
| 24 |
20/0.12 |
2 |
PE 1.7 |
50/0.12 |
6.0MM |
| 22 |
16/0.16 |
2 |
PE 1.9 |
16X5/0.12 |
6.0MM |
| 23 |
23/0.12+TINSEL |
2 |
PE 1.7 |
16X6/0.12 |
6.0MM |
| 20 |
26/0.16 |
2 |
PE 1.8 |
16X7/0.12 |
6.0MM |
|

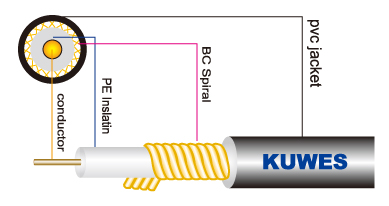

| KS-3031 MICROPHONE CABLE 24AWG |
|
20/0.12MM BC
+ 90% COPPER SPIRAL WRAPPED
+ PVC O.D.5.8MM
COLOR: BLACK/BLUE/RED/YELLOW/GREEN |
| MONO |
|
|
|
| KS-0200 MICROPHONE CABLE 22AWG |
16/0.16MM BC
+ 90% COPPER BRAID SHIELD
+ PVC O.D.6.1MM
COLOR: BLACK/BLUE/RED/YELLOW/GREEN |
| STEREO |
|
|
|

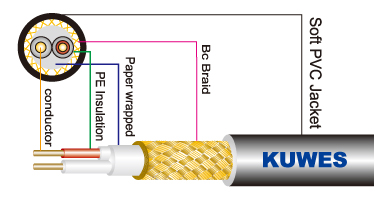

| KS-3030 MICROPHONE CABLE 24AWG |
20/0.12MM BC
+ 90% COPPER BRAID SHIELD
+ PVC O.D.6.0MM
COLOR: BLACK/BLUE/RED/YELLOW/GREEN |
| STEREO |
|
|
|
|
|
