ANTENNA COAXIAL CABLE
(1) RG-SERIES (UL1354,UL1365,UL1478,UL1792) |
COAXIAL CABLE
RG-TYPE CABLE (UL1354, 1365, 1478, 1792) STANDARD SIZE/SPECIFICATION
TYPE DESIGNATION:
APPLICATIONS:
- FOR INTERNAL WIRING TV, RADIO, RECEIVERS VTR, TAPE RECORDER, LOCAL AREA NETWORK, ANTENNA, SATELLITE, AND OTHER ELECTRONIC EQUIPMENT.
|
DESCRIPTION:
◆ UL 1354
- STRANDED, OR SOLID, TINNED OR BARE, COPPER OR COPPER ALLOY CONDUCTOR.
- RATED TEMP: 60 OR 80℃, RATED VOLTAGE: 30 VOLTS.
- LOW LOSSES AND LOW PROPAGATION DELAYS.
◆ UL 1365
- STRANDED, OR SOLID, TINNED OR BARE, COPPER OR COPPER ALLOY CONDUCTOR.
- RATED TEMP: 60℃, RATED VOLTAGE: 300 VOLTS.
◆ UL 1478
- STRANDED, OR SOLID, TINNED OR BARE, COPPER OR COPPER ALLOY CONDUCTOR.
- RATED TEMP: 60℃, RATED VOLTAGE: 300 VOLTS.
- PASSES UL VW-1 VERTICAL FLAME TEST.
◆ UL 1792
- STRANDED, OR SOLID, TINNED OR BARE, COPPER OR COPPER ALLOY CONDUCTOR.
- RATED TEMP: 80℃, RATED VOLTAGE: 30 VOLTS.
- LOW LOSSES AND LOW PROPAGATION DELAYS.
|
| TYPE |
CONDUCTOR |
INSULATION |
BRAID SHIELD |
JACKET |
NOM.
IMPED.
OHM |
NOM.
CAPA.
PF/M |
ATTENUATION
100MHZ
DB/KM |
| NO./MM |
MTRL |
MM |
MTRL |
NO./MM |
NO./MM |
MTRL |
MM |
MTRL |
| RG-6/U |
1/1.02 |
C |
4.57 |
FPE |
AF |
95% |
T |
6.9 |
PVC |
75 |
55 |
94 |
| RG-8/U |
7/0.9 |
C |
7.24 |
FPE |
95% |
- |
C |
10.3 |
PVC |
52 |
85 |
64 |
| RG-8/U |
7/0.724 |
C |
7.24 |
PE |
95% |
- |
C |
10.3 |
PVC |
52 |
97 |
70 |
| RG-8A/U |
7/0.724 |
C |
7.24 |
PE |
95% |
- |
C |
10.3 |
NC-PVC |
52 |
97 |
70 |
| RG-8/X |
19/0.287 |
C |
3.94 |
FPE |
95% |
- |
C |
6.15 |
PVC |
52 |
85 |
121 |
| RG-11/U |
1/1.63 |
C |
7.24 |
FPE |
DF |
75% |
T |
10.3 |
PVC |
75 |
57 |
49 |
| RG-11/U |
7/0.404 |
T |
7.24 |
PE |
95% |
- |
T |
10.3 |
PVC |
75 |
67 |
72 |
| RG-14/U |
1/2.591 |
C |
9.4 |
PE |
97% |
97% |
CC |
13.8 |
PVC |
52 |
97 |
50 |
| RG-55A/U |
1/0.889 |
S |
2.9 |
PE |
97% |
97% |
SS |
5.4 |
NC-PVC |
50 |
97 |
120 |
| TWINAXIAL |
7/0.32X2 |
T,C |
5.99 |
PE |
95% |
- |
T |
8.4 |
PVC |
100 |
51 |
136 |
| RG-58/U |
1/0.8 |
C |
2.9 |
PE |
95% |
- |
T |
5.0 |
PVC |
50 |
94 |
140 |
| RG-58A/U |
19/0.203 |
T |
2.9 |
FPE |
AF |
97% |
T |
5.03 |
PVC |
50 |
86 |
131 |
| RG-58A/U |
19/0.18 |
T |
2.95 |
PE |
95% |
- |
T |
4.95 |
PVC |
50 |
102 |
160 |
| RG-58C/U |
19/0.18 |
T |
2.95 |
PE |
95% |
- |
T |
4.95 |
NC-PVC |
50 |
102 |
160 |
| THIN ETHERNET |
19/0.203 |
T |
2.59 |
FPE |
DF |
97% |
T |
4.62 |
NC-PVC |
50 |
83 |
131 |
| RG-59/U |
7/0.254 |
C |
3.71 |
FPE |
95% |
- |
C |
6.15 |
PVC |
75 |
57 |
98 |
| RG-59/U |
1/0.81 |
C |
3.71 |
FPE |
95% |
95% |
C |
6.15 |
PVC |
75 |
57 |
98 |
| RG-59/U DUAL |
1/0.643 |
CW |
3.71 |
PE |
95% |
- |
C |
6.15X12.4 |
PVC |
75 |
67 |
112 |
| RG-59/U |
1/0.643 |
CW |
3.71 |
PE |
95% |
- |
C |
6.15 |
PVC |
73 |
69 |
120 |
| RG-59A/U |
17/0.16 |
C |
3.71 |
PE |
95% |
- |
C |
6.15 |
NC-PVC |
73 |
69 |
120 |
| RG-59B/U |
1/0.584 |
CW |
3.71 |
PE |
95% |
- |
C |
6.15 |
NC-PVC |
75 |
67 |
120 |
| RG-62/U |
1/0.643 |
CW |
3.71 |
SSPE |
95% |
- |
C |
6.15 |
PVC |
93 |
44 |
83 |
| RG-62A/U |
1/0.643 |
CW |
3.71 |
SSPE |
95% |
- |
C |
6.15 |
NC-PVC |
93 |
44 |
83 |
| RG-62B/U |
7/0.203 |
CW |
3.71 |
SSPE |
95% |
- |
C |
6.15 |
NC-PVC |
93 |
44 |
100 |
| RG-71B/U |
1/0.643 |
CW |
3.71 |
SSPE |
95% |
95% |
TT |
6.22 |
PE |
93 |
44 |
84 |
| RG-174/U |
7/0.16 |
CW |
1.52 |
PE |
95% |
- |
T |
2.8 |
PVC |
50 |
100 |
260 |
| RG-174A/U |
7/0.16 |
CW |
1.52 |
PE |
95% |
- |
T |
2.8 |
NC-PVC |
50 |
100 |
260 |
| RG-212/U |
1/1.412 |
S |
4.7 |
PE |
97% |
97% |
SS |
8.4 |
NC-PVC |
50 |
98 |
87 |
| RG-213/U |
7/0.752 |
C |
7.24 |
PE |
95% |
- |
C |
10.3 |
NC-PVC |
50 |
98 |
70 |
| RG-214/U |
7/0.752 |
S |
7.24 |
PE |
97% |
97% |
SS |
10.8 |
NC-PVC |
50 |
98 |
67 |
| RG-216/U |
7/0.404 |
T |
7.24 |
PE |
97% |
97% |
CC |
10.8 |
PVC |
75 |
67 |
72 |
| RG-223/U |
1/0.889 |
S |
2.9 |
PE |
97% |
97% |
SS |
5.3 |
NC-PVC |
50 |
98 |
120 |
|
|

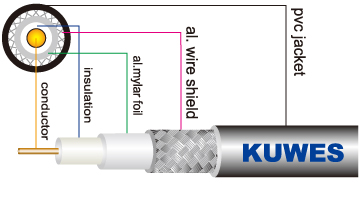

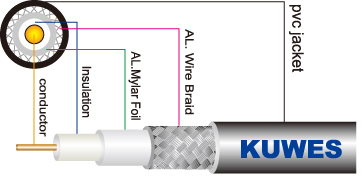

| KS-8001 RG-6/U DUAL SHIELD |
|
1/1.0MM CCS + FOAM PE
+ ALUM. MYLAR SHIELD
+ 16 X 4 / 0.12 AL-WIRE BRAID SHIELD
+ BLACK PVC O.D.6.5MM |
| 75 OHM |
|
|
|

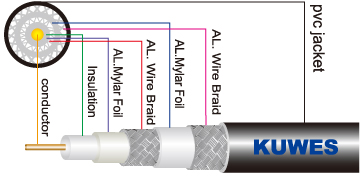

| KS-8002 RG-6/U QUAD SHIELD |
1/1.0MM CCS + FOAM PE
+ ALUM. MYLAR SHIELD
+ 16 X 4 / 0.12 AL.WIRE BRAID SHIELD
+ ALUM. MYLAR SHIELD
+ 16 X 3 / 0.12 AL.WIRE BRAID SHIELD
+ BLACK PVC O.D.7.0MM |
| 75 OHM |
|
|
|

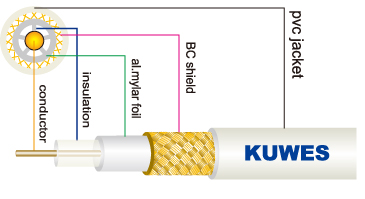

| KS-8003 RG-6/U AIR SPACE |
1/0.95MM BC + AIR SPACE PE
+ ALUM. MYLAR SHIELD
+ 16 X 3 / 0.10 BC BRAID SHIELD
+ WHITE PVC O.D. 6.5MM |
| 75 OHM |
|
|
|

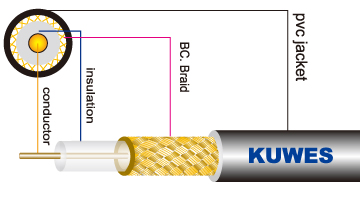

| KS-8004 RG-58/U |
|
1/0.8MM BC+PE INSULATION
+ 16 X 7 / 0.12 BC BRAID
+ PVC O.D. 4.95MM |
| 50 OHM |
|
|
|

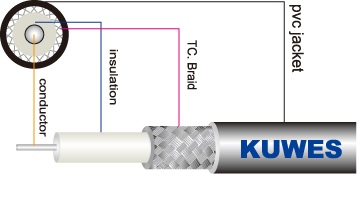

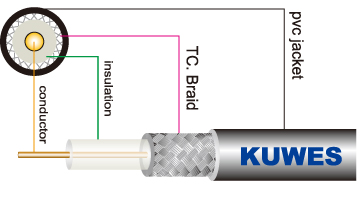

| KS-8005 RG-58A/U |
|
19/0.18MM TC + FOAM PE
+ 16 X 7 / 0.12 TC BRAID
+ PVC O.D. 4.95MM |
| 50 OHM |
|
|
|

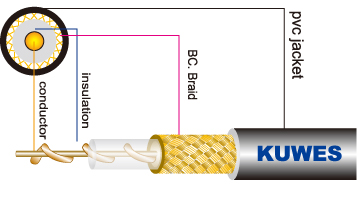

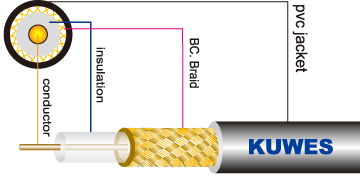

| KS-8014 RG-8/U |
7/0.72MM BC + PE 7.24MM
+ 24 X 8 / 0.16 BC BRAID
+ PVC JACKET O.D. 10.30MM |
| 52 OHM |
|
|
|
| KS-8006 RG-58C/U |
|
19/0.18MM TC + FOAM PE
+ 16 X 7 / 0.10 TC BRAID
+ NC-PVC O.D. 4.95MM |
| 50 OHM |
|
|
|

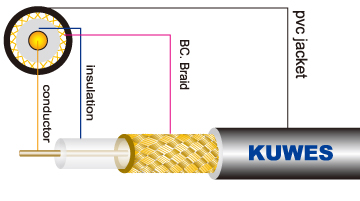

| KS-8007 RG-59/U |
|
1/0.643MM CCS + PE INSULATION
+ 16 X 7 / 0.12 BC BRAID
+ PVC O.D. 6.15MM |
| 75 OHM |
|
|
|

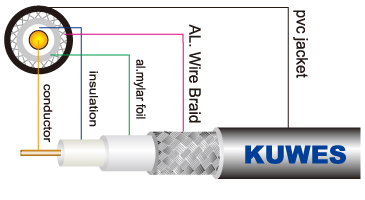

| KS-8008 RG-59/U DUAL SHIELD |
1/0.643MM BC + PE INSULATION
+ ALUMINIUM MYLAR SHIELD
+ 16 X 3 / 0.12 AL. BRAID
+ PVC O.D. 6.15MM |
| 75 OHM |
|
|
|

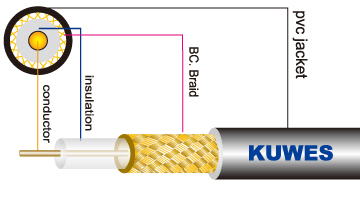

| KS-8009 RG-59B/U |
1/0.584MM CCS + PE INSULATION
+ 16 X 7 / 0.12 BC BRAID
+ PVC O.D. 6.15MM |
| 75 OHM |
|
|
|
| KS-8010 RG-62/U |
1/0.643MM CCS + FILAMENT THREAD PE WITHIN TUBE
+ 16 X 7 / 0.12 BC BRAID
+ PVC O.D. 6.15MM |
| 93 OHM |
|
|
|
| KS-8015 RG-11/U |
7/0.404MM BC + PE 7.24MM
+ 24 X 8 / 0.18MM BC BRAID
+ PVC JACKET O.D. 10.30MM |
| 75 OHM |
|
|
|
| KS-8011 RG-174/U |
7/0.16MM BC + PE INSULATION
+ 16 X 4 / 0.10 TC BRAID
+ PVC O.D. 2.55MM |
| 50 OHM |
|
|
|
| KS-8012 RG-213/U |
7/0.752MM BC + PE INSULATION
+ 24 X 8 / 0.16 BC BRAID
+ PVC O.D. 10.30MM |
| 50 OHM |
|
|
|

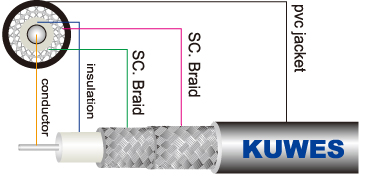

| KS-8013 RG-214/U |
|
7/0.752MM SCS + PE 7.24MM
+ 24 X 7 / 0.16 DOUBLE LAYER SC BRAID
+ PVC JACKET O.D. 10.80MM |
| 50 OHM |
|
|
|

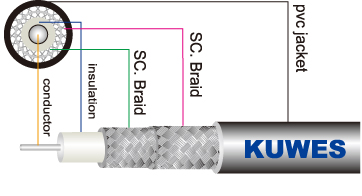

| KS-8058 RG-223/U |
1/0.889MM SC + PE 2.9MM
+ DOUBLE LAYER SC BRAID
+ PVC JACKET O.D. 5.3MM |
| 50 OHM |
|
|
|

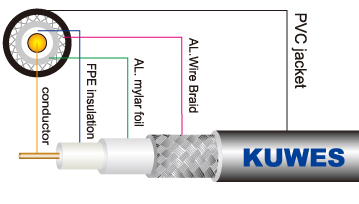

| KS-8032 CATV RG-6 CABLE DUAL TYPE |
1/1.02MM CCS + FOAM PE 4.57MM
+ ALUM. FOIL
+ 90% ALUM. WIRE BRAID
+ BLACK PVC JACKET 6.99MM |
| 75 OHM |
|
|
|
| KS-80298 CATV RG-59 CABLE |
1/0.8MM BC + FOAM PE 3.66MM
+ ALUM.FOIL
+ 60% ALUM.WIRE BRAID
+ BLACK PVC JACKET 6.15MM |
| 75 OHM |
|
|
|
|
|
