SPEAKER & HI-FI POWER CABLE

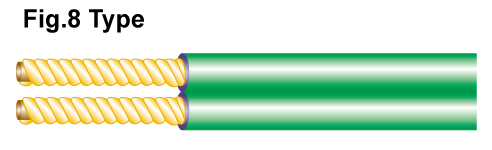

(1) AC / DC, BELL, SPEAKER, FIG.8 CABLE SERIES

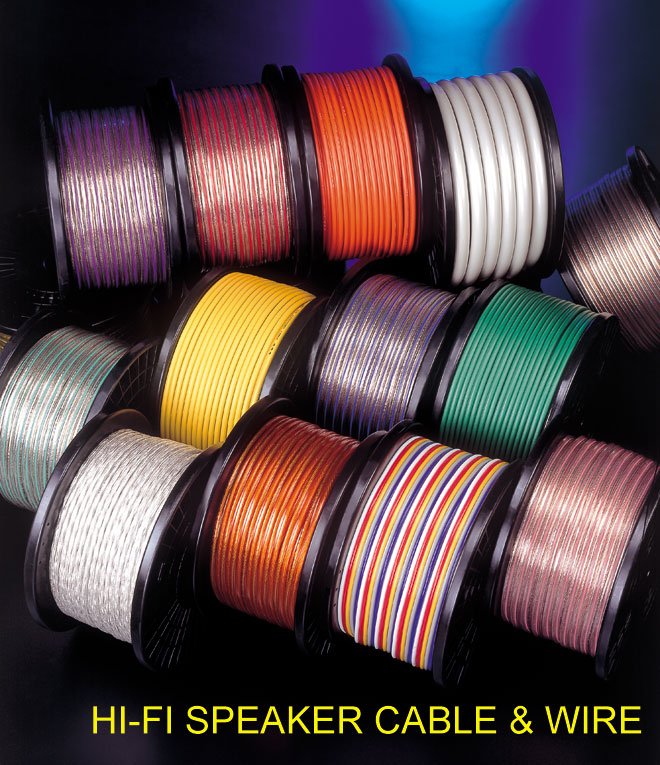

SPEAKER & HI-FI POWER CABLE

HI FI OFC SPEAKER CABLE ZHR

PRODUCT DESCRIPTION:

  • OFC TINNED OR OFC BARE, STRANDED COPPER CONDUCTOR, 26-22 AWG
  • TRANSPARENT OR COLOR PVC INSULATION.
  • BRAIDLESS PARALLEL CORDS.

APPLICATIONS:

  • USES FOR CAR SPEAKER, GENERAL AUDIO CABLE AND HIGH DEFINITION LOW LOSS SPEAKER.

CONDUCTOR: SOLID / STRANDED CONDUCTOR
TYPE: BARE / TINNED OFC COPPER
JACKET: COLOR-CODED PVC /
TRANSPARENT PVC INSULATION

TYPE: B SPECIFICATION (AMERICAN STANDARD)

CONDUCTOR INSULATION JACKET
AWC NO./MM MM OVERALL DIA.
26 7/0.16 0.45 1.4MMX2.8MM
24 11/0.16 0.60 1.8MMX3.6MM
22 17/0.16 0.50 1.8MMX3.6MM
20 26/0.16 0.50 1.9MMX3.8MM
18 41/0.16 0.50 2.2MMX4.4MM
16 26/0.254 0.60 2.5MMX5.0MM
16 15X7/0.12 0.60 3.1MMX6.2MM
14 15X7/0.16 0.90 4.1MMX8.2MM
13 32X7/0.12 1.00 4.1MMX8.2MM
12 45X7/0.12 1.60 5.8MMX11.6MM

EUROPEAN STANDARD

@
AREA
MM
STRANDED CONDUCTOR
MM/NO.
PVC JACKET O.D.:MM
0.5 0.12MMX44 2.3X4.6
0.75 0.12MMX66 2.3X4.6
1.5 0.12MMX19X7 3.1X6.2
2.5 0.12MMX31X7 3.6X7.2
4 0.12MMX50X7 5X10
6 0.12MMX75X7 5.5X11
@
AREA
MM
STRANDED CONDUCTOR
MM/NO.
PVC JACKET O.D.:MM
7.52 0.12MMX95X7 6.5X17
4.69 0.12MMX59X7 5.5X15
2.93 0.12MMX37X7 4.5X13
2.11 0.12MMX15X7 4.5X13
1.9 0.12MMX24X7 3.5X11
1.09 0.16MMX54 3.5X11
1.19 0.12MMX15X7 3.9
0.6 0.16MMX30 3.9
0.75 0.12MMX66 2.6X7
@
AWG AREA
MM
STRANDED CONDUCTOR PVC JACKET
13 2.63 0.12MMX33X7 4CX3.8
14 2.08 0.12MMX59X7 4CX3.8
15 1.65 0.12MMX21X7 4CX3.5
16 1.29 0.12MMX16X7 4CX3.5
17 1.04 0.12MMX96 4CX2.4
@ @ @ @
@ 1 0.12MMX88 4CX2.3
@ 1.5 0.12MMX19X7 4CX3.1
@ 2 0.12MMX31X7 4CX3.8
@ 2.5 0.12MMX49X7 4CX3.8

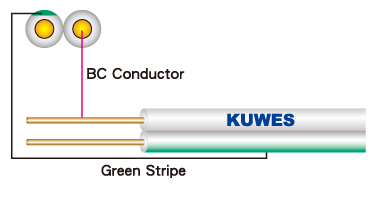

KS-0096 BELL WIRE 0.16MM2
9/0.15MM BARE COPPER X 2F
COLOR:WHITE WITH GREEN STRIPE
LIGHT DUTY

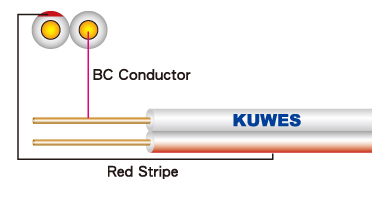

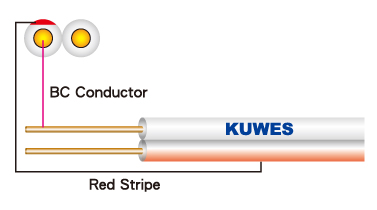

KS-3018 BELL WIRE 0.19MM2

20/0.11MM BARE COPPERX2F
COLOR:WHITE WITH RED STRIPE
                   ONE SIDE RED
                   +ONE SIDE BLACK/TRANSPARENT CLEAR GOLD

LIGHT DUTY

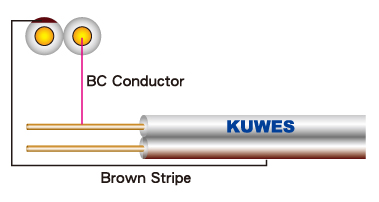

KS-0010 SPEAKER WIRE 0.22MM2

14/0.14MM BARE COPPER X 2F
COLOR: GREY WITH BROWN STRIPE

LIGHT DUTY

KS-0012 SPEAKER WIRE 044MM2

14/0.14MM BARE COPPER X 2F
COLOR: BROWN WITH WHITE STRIPE

LIGHT MEDIUM DUTY

KS-0056 SPEAKER WIRE 0.50MM2
20/0.18MM BARE COPPER X 2F
COLOR:WHITE WITH BLUE STRIPE
MEDIUM DUTY

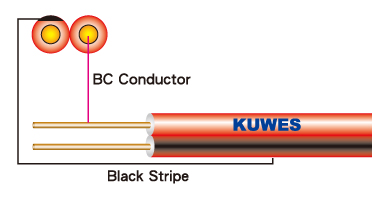

KS-7076 SPEAKER WIRE 0.67MM2
70/0.11MM BARE COPPER X 2F
COLOR:RED WITH BALCK STRIPE
MEDIUM DUTY

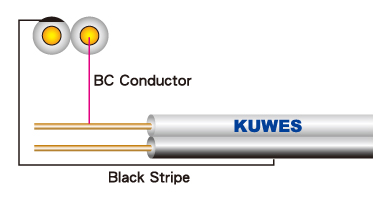

KS-0020 SPEAKER WIRE 0.75MM2
24/0.20MM BARE COPPER X 2F
COLOR:WHITE WITH BLACK STRIPE
MEDIUM DUTY

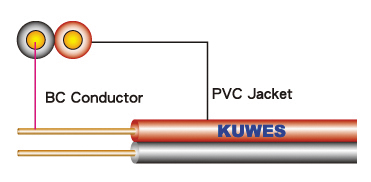

KS-0030 SPEAKER WIRE 1.0MM2
32/0.20MM BARE COPPER X 2F
COLOR:ONE SIDE RED+ONE SIDE BLACK
MEDIUM DUTY

KS-0040 SPEAKER WIRE 1.5MM2
60/0.18MM BARE COPPER X 2F
COLOR:ONE SIDE RED+ONE SIDE BLACK
MEDIUM DUTY

KS-5018 SPEAKER WIRE 1.27MM2
50/0.18MM BARE COPPER X 2F
COLOR: WHITE WITH RED STRIPE
MEDIUM DUTY

KS-0050 SPEAKER WIRE 2.0MM2
62/0.20MM BARE COPPER X 2F
COLOR: OEN SIDE RED + ONE SIDE BLACK
MEDIUM DUTY

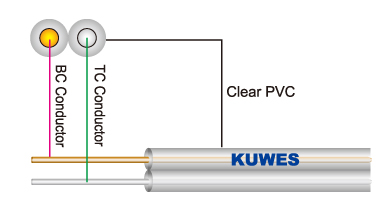

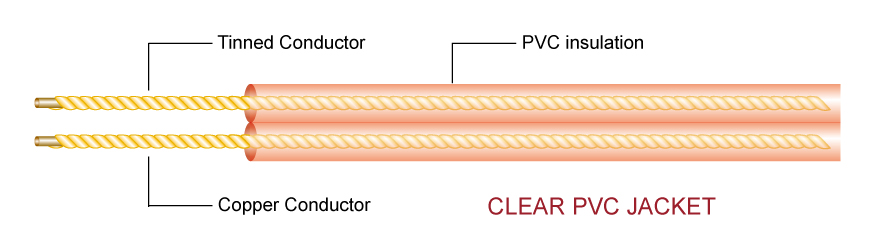

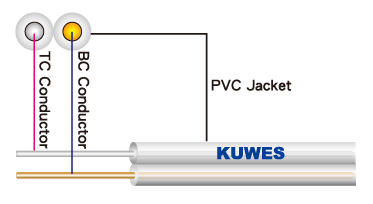

KS-0008 SPEAKER WIRE 0.34MM2
30/0.12MM BC + 30/0.12MM TC
COLOR: TRANSPARENT
OFC (99.999%)

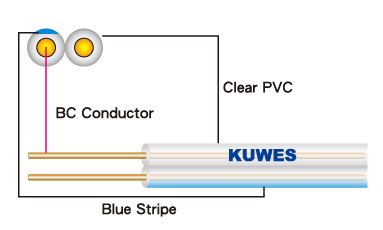

KS-0013 SPEAKER WIRE 0.68MM2
60/0.12MM OFC X 2F
COLOR: TRANSPARENT WITH BLUE STRIPE
OFC (99.999%)

KS-8075 SPEAKER WIRE 0.75MM2
24/0.20MM BC + 24/0.20MM TC
COLOR: TRANSPARENT
OFC (99.999%)

KS-8010 SPEAKER WIRE 1.0MM2
32/0.20MM BC + 32/0.20MM TC
COLOR: TRANSPARENT
OFC (99.999%)

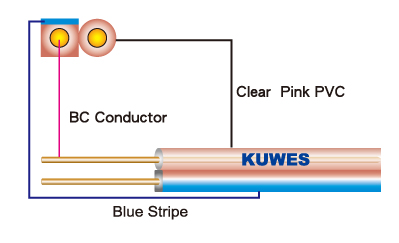

KS-0086 SPEAKER WIRE 1.20MM2
102/0.12MM OFC X 2F
ONE ROUND + ONE SQUARE
COLOR: PINK TRANSPARENT WITH BLUE STRIPE
OFC (99.999%)

KS-8015 SPEAKER WIRE 1.50MM2

48/0.20MM BC + 48/0.20MM TC
COLOR: TRANSPARENT

OFC (99.999%)

KS-8020 SPEAKER WIRE 2.0MM2
114/0.15MM BC + 114/0.15MM TC
COLOR: TRANSPARENT
OFC (99.999%)

KS-0016 SPEAKER WIRE 2.00MM2
168/0.12MM OFC X 2F
ONE ROUND + ONE SQUARE
COLOR: TRANSPARENT WITH BLUE STRIPE
OFC (99.999%)

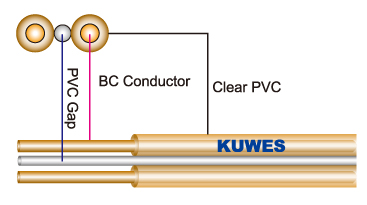

KS-25012 SPEAKER WIRE 2.0MM2
252/0.10MM OFC X 2F
PVC O.D 4.9MM+3.0MM+4.9MM
COLOR:TRANSPARENT WITH WHITE PVE IN THE MIDDLE
OFC (99.999%)

KS-8025 SPEAKER WIRE 2.5MM2
315/0.10MM BC + 315/0.10MM TC
COLOR: TRANSPARENT
OFC (99.999%)

KS-5005 SPEAKER WIRE 3.0MM2

259/0.12MM TINNED COPPER
+ 259/0.12MM BARE COPPER
+ CLEAR PVC JACKET
COLOR: TRANSPARENT WITH ORANGE STRIPE IN THE MIDDLE

HEAVY DUTY+OFC

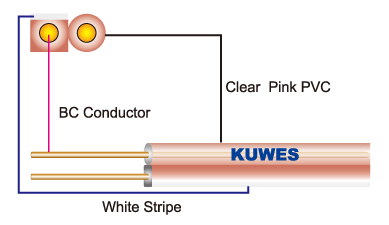

KS-0706 SPEAKER WIRE 3.56MM2
315/0.12MM OFC X 2F
ONE ROUND + ONE SQUARE
COLOR: PINK TRANSPARENT WITH WHITE STRIPE
HEAVY DUTY+OFC

KS-40010 SPEAKER WIRE 4.0MM2
504/0.10MM OFC X 2F
COLOR: TRANSPARENT WITH BLACK STRIPE
HEAVY DUTY+OFC

KS-5003 SPEAKER WIRE1.27MM2
(16/0.12MM TINNED COPPER X 3
+ 16/0.12MM BARE COPPERX4) STRANDED X 2F
+ CLEAR PVC JACKET
COLOR: TRANSPARENT WITH BLUE STRIPE IN THE MIDDLE
HI-FI

KS-5002 SPEAKER WIRE 3.0MM2
259/0.12MM TINNED COPPER
+ 259/0.12MM BARE COPPER+CLEAR PVC JACKET
COLOR: TRANSPARENT GODLEN/TRANSPARENT ORANGE
HI-FI

KS-5098 SILVER SPEAKER WIRE 1.0MM2
126/0.10MM SILVER COATING COPPER X 2F
+ CLEAR PVC JACKET O.D. 3.9MM X 7.8MM
COLOR: FOG TRANSPARENT PVC JACKET
HI-FI

KS-5001 SILVER SPEAKER WIRE 1.2MM2

154/0.10MM SILVER COATING COPPER X 2F
+ CLEAR PVC JACKET
COLOR: TRANSPARENT WITH FLUORESCENT PINK STRIPE

HI-FI

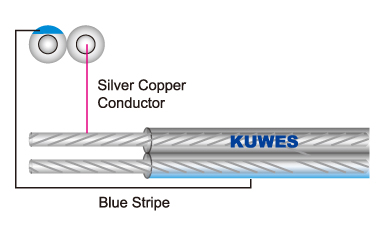

KS-5000 SILVER SPEAKER WIRE 3.85MM2
490/0.10MM SILVER COATING COPPER X 2F
+ COLOR PVC JACKET
COLOR: TRANSPARENT WITH BLUE STRIPE
HI-FI

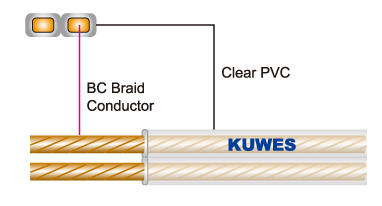

KS-0038 FLAT SPEAKER WIRE 0.75MM2
96/0.10MM OFC X 2F BRIAD TYPE
COLOR: PINK TRANSPARENT
HI-FI

KS-5012 FLAT SPEAKER WIRE 2.50MM2
224/0.12MM OFC X 2F
COLOR: WHITE
HI-FI

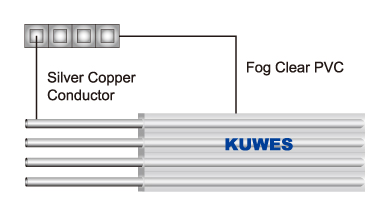

KS-5099 4 CORE SPEAKER WIRE 1.0MM2
126/0.10MM SILVER COATING COPPER X 4F
+ CLEAR PVC JACKET O.D. 3.9MM X 15.8MM
COLOR: FOG TRANSPARENT PVC JACKET
HI-FI

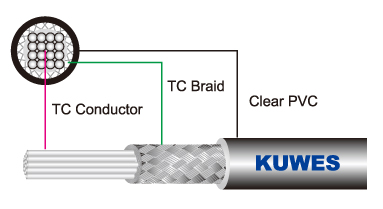

KS-5077 POWER & GROUND WIRE
12~1/0AWG TINNED COPPER
+ TINNED COPPER BRAIDED 85%
+ TRANSPARENT PVC JACKET
COLOR: BLUE/RED/BROWN/BLACK/CLEAR
HI-FI

KS-R9BM SILVER SPEAKER CABLE
SILVER COPPER X2CORE+BARE COPPER X 4CORE
+ BARE COPPER SUPPPORT CONDUCTOR IN THE CENTER
WITH PVC DIVIDED STRIPE (HARD BUT FLEXIBLE)
SIZE: 2.5SQ.MM-4.0SQ.MM
HI-FI

KS-R9FL BRAID FLAT SPEAKER CABLE
SIZE: 1.0SQ.MM-4.0SQ.MM
HI-FI OFC FLAT BRAID TYPE
COLOR: TRANSPARENT, WHITE, SMOKE, BLACK
HI-FI

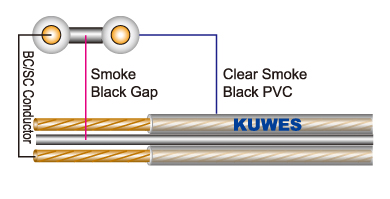

KS-R9TDC SMOKE SPEAKER CABLE

SIZE:1.0SQ.MM/2.0SQ.MM/3.0SQ.MM/4.0SQ.MM/5.0SQ.MM
HI-FI OFC CHOICE

HI-FI
