ANTENNA COAXIAL CABLE
(6) TEFLON RF / MINI COAXIAL SERIES

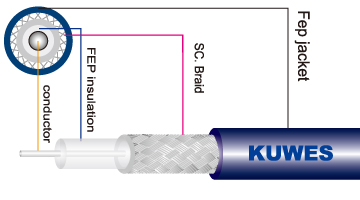

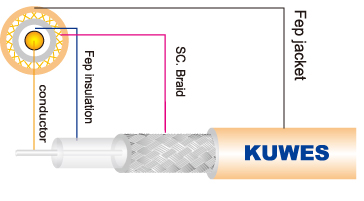

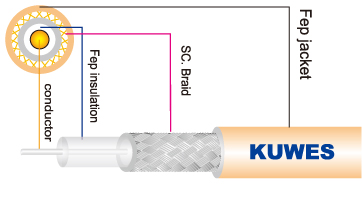

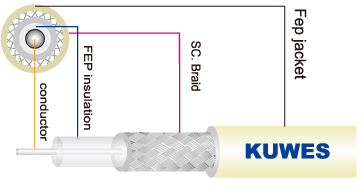

TEFLON HIGH FREQUENCY COAXIAL CABLE (PFA/FEP/P.T.F.E.)

PART NO: MINI178 AWG #32/7 7X40 (7X0.079MM)

  • TEMPERATURE: 200℃
  • VOLTAGE: 30V
  • IMPEDANCE: 50OHM
CONDUCTOR A CONDUCTOR SC
COND O.D 7/0.079MM
INSULATION B INSULATION FEP
THICKNESS 0.211MM
DIAM. 0.66MM
SHIELD C CONDUCTOR SC
SHIELD 16/4/0.05MM
COVERAGE 95%
I.D. 0.9MM
JACKET
INSULATION
D JACKET FEP
THICKNESS 0.115MM
OUT DIAM. 1.13MM

RG178, MINI178, RG179, RG316, MICRO COAXIAL CABLE

PART NO RG178
AWG30/7
7X38
(7X0.102MM)
MINI178
AWG30/S
1X30
(1X0.254MM)
MINI178
AWG32/7
7X40
(7X0.079MM)
MINI178
AWG32/7
7X40
(7X0.079MM)
MINI178
AWG34/7
7X42
(7X0.064MM)
MINI178
AWG36/7
7X44
(7X0.051MM)
RG179
AWG30/7
7X38
(7X0.102MM)
RG316
AWG26/7
7X34
(7X0.17MM)
MICRO
COAXIAL
CABLE
COND.O.D. 7/0.102MM 1/0.254MM 7/0.079MM 7/0.079MM 7/0.064MM 7/0.051MM 7/0.102MM 7/0.17MM 0.03/7
DIAMETER 0.3MM 0.254MM 0.237MM 0.237MM 0.195MM 0.155MM 0.3MM 0.51MM 0.009
CONDUCTOR SC SC SC SC SC SC SC SC SN COATED SN CU ALLOY
INSULATION FEP FEP FEP FEP FEP FEP FEP FEP PFA

INSULATION THICKNESS

0.28MM 0.273MM 0.211MM 0.211MM 0.168MM 0.123MM 0.65MM 0.51MM 0.08MM
DIAM. 0.86MM 0.8MM 0.66MM 0.66MM 0.53MM 0.40MM 1.6MM 1.53MM 0.25MM
SHIELD COPPER BRAID 16/3/0.10 SC 16/6/0.05 SC 16/4/0.05 SC 16/4/0.05 SC 16/4/0.05 SC 8/4/0.05 SC 16/4/0.12 SC 16/5/0.1 SC 0.03X26
COVERAGE 99% 95% 95% 95% 99% 90% 95% 95% 95%
DIAMETER 1.3MM 1.0MM 0.9MM 0.9MM 0.73MM 0.6MM 2.06MM 1.92MM 0.31MM
INSULATION FEP FEP FEP FEP FEP FEP FEP FEP PFA
INSULATION THICKNESS 0.25MM 0.135MM 0.115MM 0.21MM 0.125MM 0.1MM 0.24MM 0.3MM 0.035MM
OUT. DIAM. 1.80MM 1.27MM 1.13MM 1.32MM 0.98MM 0.8MM 2.54MM 2.52MM 0.38MM
IMPEDANCE [(OHMS) 50 50 50 50 50 50 75 50 50

RF CABLE ASSEMBLIES

RF COAXIAL CABLE ASSEMBLY

CABLE TYPE
RG178, RG174, RG137, RG316, 1.13MM



CONNECTOR TYPE
SMA REVERES, SMA,
MMCX, MCX, TNC, I-PEX,
N TYPE
SMA STRAIGHT PLUG TO SMA STRAIGHT
PLUG RG-316, RG-178,
RG-58
MMCX STRAIGHT PLUG TO MMCX STRAIGHT
PLUGRG-316, RG178,
RG-174
MCX R/A PLUG TO
MCX R/A PLUG RG-316,
RG-178

MMCX R/A PLUG TO MMCX R/A PLUG,RG-316, RG-178

MCX R/A PLUG TO MCX R/A JACK
RG-316, RG-178
SMA STRAIGHT PLUG TO SMA STRAIGHT JACK
RG-316, RG-58
SMA STRAIGHT JACK TO SMA STRAIGHT JACK
RG-316, RG-178
MCX STRAIGHT PLUG TO MCX STRAIGHT PLUG
RG-316, RG-178



SMA-N PLUG TO PLUG
BNC PLUG TO PLUG
MCX PLUG TO UNTERMINATED END
TNC PLUG TO PLUG
BNC PLUG TO RIGHT ANGLE PLUG
MCX RIGHT ANGLE PLUG TO PLUG
SMA-N RIGHT ANGLE PLUG TO PLUG
TNC-MMCX PLUG TO PLUG
MCX PLUG TO UNTERMINATED END
MMCX-N RIGHT ANGLE PLUG TO PLUG
MMCX-SMA RIGHT ANGLE PLUG TO PLUG
BNC PLUG TO UNTERMINATED END
MCX-SMA RIGHT ANGLE PLUG TO PLUG
SMB PLUG TO PLUG UNTERMINATED END
N-SMB PLUG TO RIGHT ANGLE PLUG
MCX-SMA PLUG TO PLUG
MMCX RIGHT ANGLE PLUG TO PLUG
SMB-F PLUG TO PLUG
MCX-SMA RIGHT ANGLE PLUG TO PLUG
MMCX-FME RIGHT ANGLE PLUG TO PLUG
MCX PLUG TO UNTERMINATED END
MMCX RIGHT ANGLE PLUG TO RIGHT ANGLE PLUG
MMCX-SMB RIGHT ANGLE PLUG TO RIGHT ANGLE PLUG
MMCX RIGHT ANGLE PLUG TO PLUG

KS-8016 RG-178/U RF MINI COAXIAL
7/0.10MM SCCS
+ FEP INSULATION
+ 95% SC BRAID
+ TEFLON FEP JACKET 1.8MM
50 OHM

KS-80188 1.13 MINI COAXIAL

7/0.08MM SC + FEP INSULATION
+ 95% SC BRAID
+ TEFLON FEP JACKET 1.13MM

50 OHM

KS-8035 RG-316/U RF MINI COAXIAL

7/0.17MM SCCS
+  FEP INSULATION
+  95% SC BRAID
+  TEFLON FEP JACKET 2.52MM

50 OHM

KS-8017 RG-179/U RF MINI COAXIAL

7/0.10MM SCCS
+ FEP INSULATION
+ 95% SC BRAID
+ TEFLON FEP JACKET 2.54MM

75 OHM
