MICROPHONE / AUDIO & VIDEO / SHIELDED WIRE
(2) AUDIO & VIDEO CABLE SERIES

HIGH-RESOLUTION OFC AUDIO & VIDEO CABLE

PRODUCT DESCRIPTION:

  • STRANDED OFC CONDUCTOR.
  • FLEXIBLE, DELICATE, SMOOTH AND DIFFERENT COLOR PVC
  • UP TO 96% OFC SHIELDING PLUS ALUMINUM FOIL OR CONDUCTIVE PVC TO REACH 100% SHIELDING EFFECT.
  • NOISELESS, LOW SIGNAL TRANSMISSION AND WELL IMPEDANCE MATCHING.
  • CABLE ASSEMBLIES AVAILABLE.

APPLICATIONS:

  • SUITABLE FOR A/V SYSTEM

AUDIO-SPIRAL SHIELD TYPE

AUDIO-VIDEO BRAID SHIELD TYPE

@
CONDUCTOR
MM/NO.
SPIRAL
SHIELD
OFC WIRE
MM/NO.
FLEXIBLE
PVC
JACKET
OD.:MM
0.12MMX10 0.12MMX30 3.7X7.4MM
0.12MMX10 0.12MMX30 4X8MM
0.12MMX20 0.12MMX30 4X8MM
0.12MMX20 0.12MMX30 5X10MM
0.12MMX20 0.12MMX30 6X12MM
@
CONDUCTOR INSULATION BRAID SHIELD JACKET NOM.CAPA.
PF/M
AWG MTRL MM MTRL CONSISTS OF MM MTRL
21 OFC 2.02 FPE 95%OFC 7.0 PVC 62
21 OFC 2.02 FPE AL-FOIL+95%OFC 7.0 PVC 62
29 OFC 2.23 FPE AL-FOIL+95%OFC 8.0 PVC 62
21 OFC 2.02 FPE 95%OFCX2 7.2 PVC 62
18 OFC 1.97 FPE 95%OFC 7.2 PVC 80
29 OFC 1.23 FPE 95%OFC 6.0X2 PVC 90
29 OFC 2.23 FPE 95%OFCX2 8.5 PVC 60
30 OFC 1.0 FPE 95%OFC 5.0X2 PVC 90
30 OFC 2.56 FPE COND.PVC+95%OFC 8.5 PVC 60
29 OFC 2.23 FPE COND.PVC+95%OFC 10.0 PVC 60
29 OFC 2.23 FPE AL-FOIL+95%OFC 10.0 PVC 60

AUDIO CABLE, DOUBLE SHIELD WITH REMOTE WIRE TYPE

AUDIO/VIDEO CABLE TYPE

CONDUCTOR
MM/NO.
1ST
SHIELD
SPIRAL
OFC WIRE
MM/NO.
2ND
SHIELD
BRAID
OFC WIRE
MM/NO.
REMOTE
OFC WIRE
MM/NO.
FLEXIBLE PVC
JACKET
O.D.:MM
0.12MMX15 0.12MMX28 0.12X64 0.12MMX10 4+2+4MM
0.12MMX15 0.12MMX28 0.12X96 0.12MMX10 6+2+6MM
0.12MMX20 0.12MMX30 @ 0.12MMX10 4+2+4MM
0.12MMX20 0.12MMX30 @ 0.12MMX10 6+2+6MM
0.12MMX20 0.12MMX64 @ 0.12MMX10 6+2+6MM
0.12MMX20 0.12MMX28 @ 0.12MMX10 6+2+6MM

AUDIO
CONDUCTOR
MM/NO.

AUDIO
SHIELD
SPIRAL
OFC WIRE
MM/NO.
VIDEO
CONDUCTOR
MM/NO.
VIDEO
SHIELD
BRAID
OFC WIRE
MM/NO.
FLEXIBLE PVC
JACKET
O.D.:MM
0.12MMX10 0.12MMX20 0.12MMX20 0.12MMX32 6+4+4MM
0.12MMX10 0.12MMX20 0.12MMX20 0.12MMX32 4+6+6MM
0.12MMX10 0.12MMX28 0.12MMX20 0.12MMX64 3.5+6+3MM

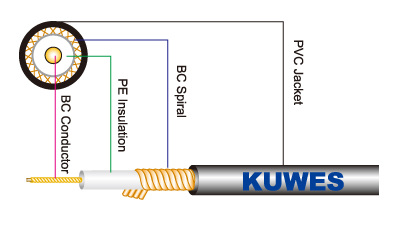

KS-3010 AUDIO CABLE
10/0.12MM BC
+ 32/0.12MM COPPER SPIRAL
PVC O.D. 3.0MM
COLOR: BLACK/GREY
SHIELD CABLE X 1 CORE
0.11MM2

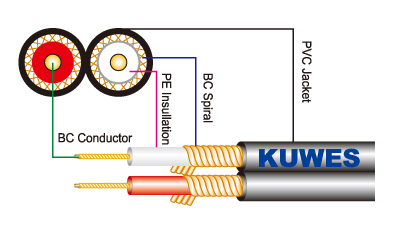

KS-3022 AUDIO CABLE
10/0.12MM BC
+ 32/0.12MM COPPER SPIRAL
PVC O.D. 2.7 X 5.4MM
COLOR: BLACK/GREY
FIG 8 SHIELD

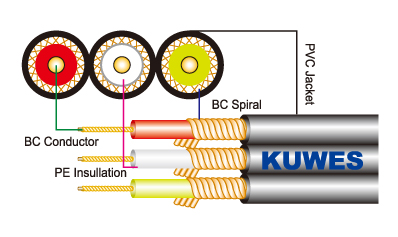

KS-3024 AUDIO CABLE
10/0.12MM BC
+ 32/0.12MM COPPER SPIRAL
PVC O.D.2.7 X 8.1MM
COLOR: BLACK/GREY
SHIELD CABLE X 3 CORE
RCA TPYE

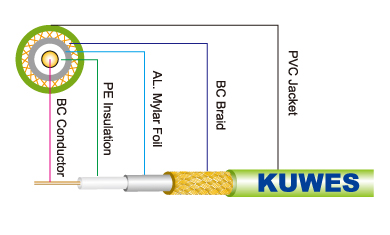

KS-5016 A/V CABLE
1 COAXIAL: BARE COPPER CONDUCTOR
+ PE INSULATION
+ ALUM.MYLAR+BARE COPPER BRAID SHIELDED
+ PVC JACKET
COLOR:ORANGE/GREEN/YELLOW
22 AWG

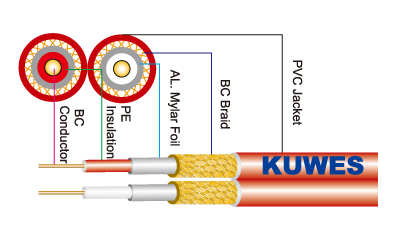

KS-5015 A/V CABLE

(BARE COPPER CONDUCTOR WITH PE INSULATION
+ALUM. MYLAR FOIL + BARE COPPER BRAID SHIELD)
X 2 COAXIAL + PVC JACKET
COLOR: ORANGE/GREEN/YELLOW

22 AWG

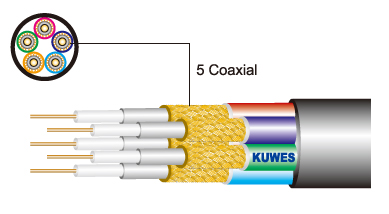

KA-050 5C COAXIAL CABLE
5COAXIAL:
1/0.50 BC + FOAM PE + AL.MYLAR
+ 96/0.12MM COPPER BRAID + PVC I.D.3.8MM
+ FILLER + PAPER WRAPPED
+ PVC O.D.13.5MM
COLOR: BLACK
RGB HV

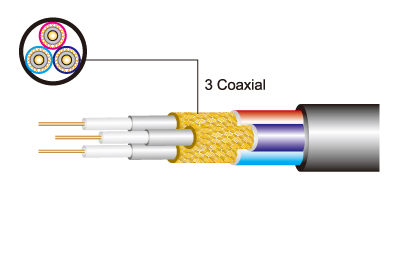

KA-030 3C COAXIAL CABLE
3COAXIAL:
(1/0.50 BC + FOAM PE + AL.MYLAR
+ 96/0.12MM COPPER BRAID + PVC I.D.3.8MM)
+ FILLER+PAPER WRAPPED
+ PVC O.D.10.0MM
COLOR: BLACK
RGB

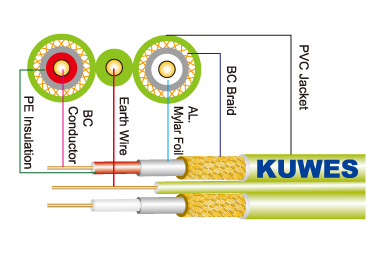

KS-5013 A/V CABLE
( BARE COPPER CONDUCTOR WITH PE INSULATION
+ ALUM. MYLAR FOIL + BARE COPPER BRAID SHIELD) X 2 COAXIAL
+ BC DRAIN WIRE IN THE MIDDLE + PVC JACKET
COLOR: ORANGE/GREEN/YELLOW
22 AWG

KS-3200 PRO GRADE S-VIDEO
( 18/0.14MM BC + PE 1.4MM)
+ BC SPIRAL SHIELD
+ PVC I.D.2.7MM X 2C
+ COTTON & PAPER WRAPPED
+ DARK BLUE SOFT PVC SOFT PVC JACKET O.D.6.5MM
S-VHS

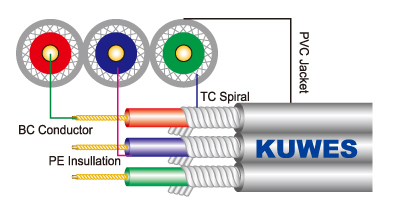

KS-5010 RGB CABLE
RED/GREEN/BLUE X 3 CORE SHIELD
+TINNED COPPER BRAID
FLAT TYPE+PEARL GREY JACKET
HOME-THEATER

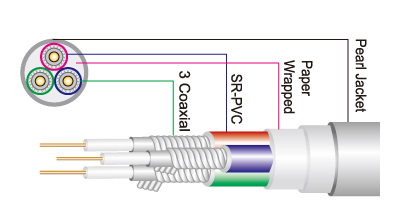

KS-5008 RGB CABLE
RED/GREEN/BLUE X 3 COAXIAL (SILVER BRAID)
+WHITE PVC INSULATION
+ PEARL WHITE JACKET (2 LAYER)
HOME-THEATER

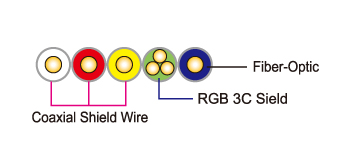

KS-5012 RGB CABLE + FIBER OPTIC
RED/WHITE/YELLOW X 3 COAXIAL
+ 1 CORE (3 SHIEDED WIRE STRANDED)
+1 CORE FIBER OPTIC
FLAT TYPE
+ BLUE/GREY/YELLOW/RED/WHITE PE INSULATION
+ TRANSPARENT JACKET
HOME-THEATER

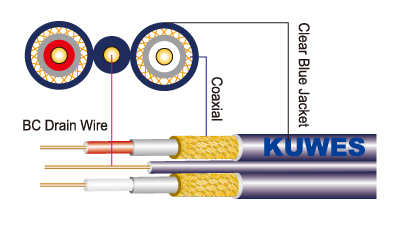

KS-3000 AUDIO FIG 8 CABLE
(30/0.12MM BC + FOAM PE + AL.MYLAR
+ 112/0.11MM COPPER BRAID) X 2COAXIAL
+ 32/0.12 CENTRAL CONDUCTOR
PVC O.D.6.0 + 2.5 + 6.0MM
COLOR: TRANSPARENT BLUE
HOME-THEATER

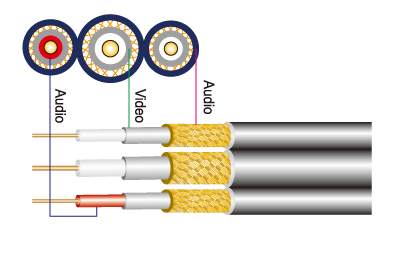

KS-3100 VIDEO+AUDIO CABLE
75[ VIDEO X 1 CORE MIDDLE : 45/0.11MM BC
AUDIO X 2 CORE : 35/0.11MM BC
3 COAXIAL FLAT TYPE
EXTRA LOW LOSS

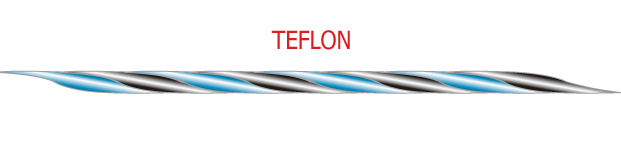

KS-5006 . KS-5007 TEFLON SPEAKER WIRE

KS-5006:
7/0.38MM BC
+ TEFLON JACKET X 16 CORE STRANDED

KS-5007:
98/0.10MM SILVER COATING COPPER
+ TEFLON JACKET X 5 CORE STRANDED
+ 24/0.20MM BC
+ TEFLON JACKET X3CORE STRANDED

TEFLON + SILVER

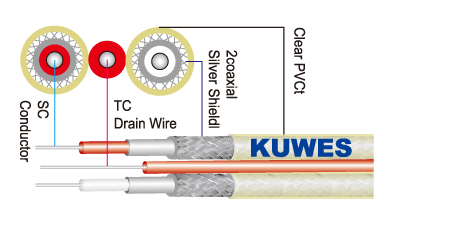

KS-5009 HI-FI A/V CABLE
(SILVER COATING COPPER CONDUCTOR WITH PE INSULATION) X 2 COAXIAL
+ ALUM. MYLAR FOIL
+SILVER COPPER BRAID SHIELD
+ TC DRAIN WIRE IN THE MIDDLE
+ CLEAR PVC JACKET
COLOR: TRANSPARENT WITH CLEAR PINK STRIPE IN THE MIDDLE
SUPERIOR STANDED

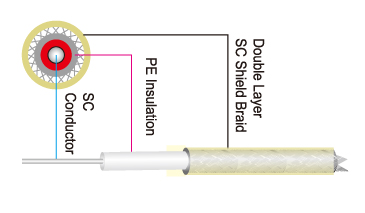

KS-5088 SILVER A/V CABLE
1 COAXIAL: SILVER COATING COPPER CONDUCTOR
+ PE INSULATION
+ DOUBLE LAYER SILVER COATING COPPER BRAID SHIELD
+ CLEAR PVC JACKET
COLOR: TRANSPARENT
(2 SC BRAID SHIELD)

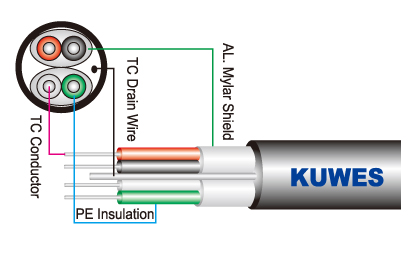

KS-3020 2PAIR AUDIO/DATA
2 PAIR SHIELD WIRE TYPE
(7/0.20MM TC + PE INSULATION X 2C)
+ ALUM.MYLAR X 2PAIR
+ TC DRAIN WIRE
+ TUBE JACKET 4.8MM
ECONOMIC
