POWER / CONTROL / ELECTRIC & AC/DC POWER CABLE & WIRE
(8) FLAT , SPT -1 , ELECTRIC, MARINE, FIRE-ALARM, FIRE-RESISTANT SERIES |
|

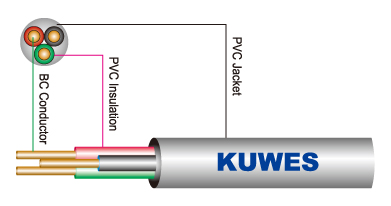

| KS-0502 WHITE ROUND FLEXIBLE |
0.75MM2 X 3C=24/0.20MMBC
1.5MM2 X 3C=30/0.25MMBC
2.5MM2 X 3C=50/0.25MMBC |
| B.S.6500 |
|
|
|

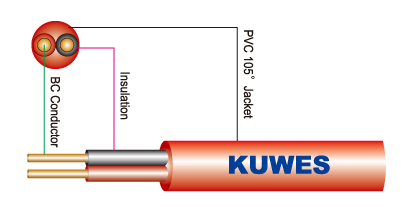

| KS-9006 FIRE-ALARM CABLE |
1.0MM2 X 2C / 1.5MM2 X 2C / 2.0MM2 X 2C
+ PVC105DEG. JACKET
COLOR: RED |
| PVC 105 DEG. |
|
|
|

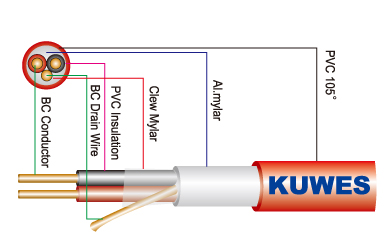

| KS-9010 FIRE-RESISTANT CABLE |
1.5MM2 X 2C / 2.0MM2 X 2C
+ AL.MYLAR SHIELD
+ PVC105DEG.JACKET
COLOR: RED |
| PVC 105 DEG. |
|
|
|

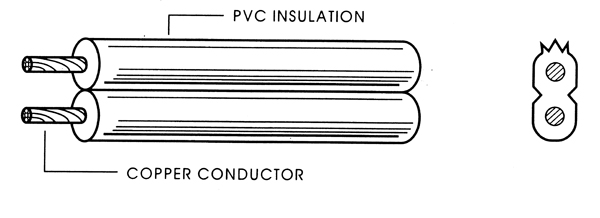

| KS-6086 SPT-1 LIGHTING CABLE |
41/0.16MM X 2F WITH PVC O.D. 2.7 X 5.4MM
CONDUCTOR : TC OR BC
COLOR:CLEAR, CLEAR YELLOW |
| 18AWG |
|
|
|

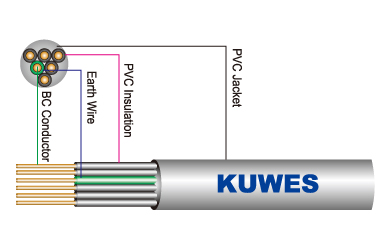

| KS-9023 ROUND GRAY FLEXIBLE |
WITHOUT SCREENED
SIZE:0.75MM2 / 1.0MM2 / 1.75MM2
CORE:2C+EARTH~24C+EARTH
COLOR: GREY/BLACK |
| WITH NUMBER COUNTING |
|
|
|
| KS-9025 0.75MM2 ELECTRIC WIRE |
DOUBLE INSULATED FIG8 CABLE
24/0.20MM BARE COPPER X 2F
PVC INSULATION+PVC JACKET |
| 600V/7.5AMPS/18AWG |
|
|
|

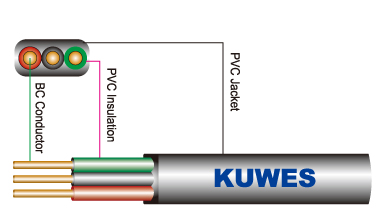

| KS-30225 FLAT BUIDING WIRE |
1.00MM2 X 3C=1/1.13MM BC
1.5MM2 X 3C=1/1.38MM BC
2.50MM2 X 3C=1/1.78MM BC |
| AVAILABLE WITH EARTH |
|
|
|

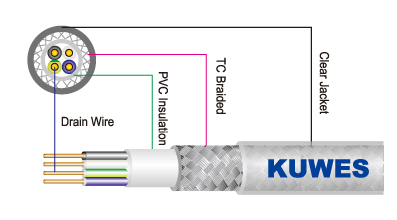

| KS-9022 MARINE (SCREENED) FLEXIBLE |
WITH TC BRAID SCREENED CLEAR PVC JACKET
+ EARTH WIRE INSIDE
SIZE:0.75MM2 / 1.0MM2 / 1.5MM2 / 1.75MM2 X 3 CORE |
| 85% COVERAGE |
|
|
|

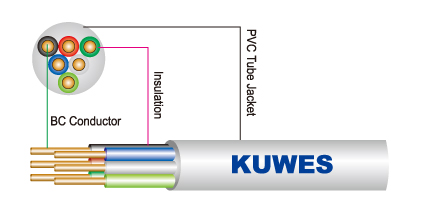

| KS-0915 SECURITY CABLE |
SIZE: 4C & 6C & 8C TUBE TYPE JACKET
CONDUCTOR: 14/0.20MM BC
+ PVC INSULATION & JACKET |
| TEMPERATURE RATING 90℃ |
|
|
|
|
|
