RUBBER / WELDING / BATTERY / AUTO / CAR / TRAILER WIRE & CABLE
(2)AUTO & CAR / AVF SERIES |

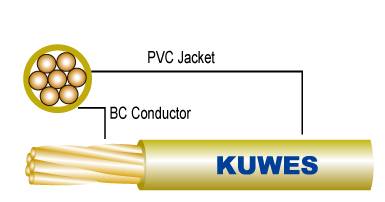

PVC AUTO CABLE
BS6862 STANDARD
| CONDUCTOR |
INSULATION |
JACKET |
|
AREA |
NO.MM |
THICKNESS |
OVERALL DIA. |
|
0.65MM2 |
9/0.30 |
0.62MM |
2.32MM |
|
1.00MM2 |
14/0.30 |
0.62MM |
2.52MM |
|
1.50MM2 |
21/0.30 |
0.62MM |
2.83MM |
|
2.00MM2 |
28/0.30 |
0.63MM |
3.13MM |
|
2.50MM2 |
35/0.30 |
0.73MM |
3.53MM |
|
3.00MM2 |
44/0.30 |
1.83MM |
3.94MM |
|
4.50MM2 |
65/0.30 |
1.04MM |
4.85MM |
|
6.00MM2 |
84/0.30 |
1.05MM |
5.65MM |
|
7.00MM2 |
97/0.30 |
1.05MM |
5.96MM |
|
8.00MM2 |
120/0.30 |
1.26MM |
6.77MM |
AWG TYPE (PRIMARY)
| CONDUCTOR |
JACKET |
|
SIZE |
NO.MM |
OVERALL DIA. |
|
#8 |
50/0.45 |
5.50MM |
|
#10 |
60/0.32 |
4.60MM |
|
#12 |
41/0.32 |
3.80MM |
|
#14 |
26//0.32 |
3.10MM |
|
#16 |
16/0.32 |
2.70MM |
|
#18 |
30/0.18 |
2.40MM |
|
#20 |
20/0.18 |
2.20MM |
AV AVF CABLE / CAR AUTO WIRE
| CONDUCTOR |
INSULATION
THICKNESS |
O.D. |
(20℃) |
|
AREA |
CORE
|
|
MM2 |
NO/MM |
MM |
MM |
Ł[/M |
|
0.5 |
20/0.18 |
0.6 |
2.2 |
0.0367 |
|
0.5 |
7/0.32 |
0.6 |
2.2 |
0.0327 |
|
0.75 |
30/0.18 |
0.6 |
2.4 |
0.0244 |
|
0.85 |
11/0.32 |
0.6 |
2.4 |
0.0208 |
|
1.25 |
50/0.18 |
0.6 |
2.7 |
0.0147 |
|
1.25 |
16/0.32 |
0.6 |
2.7 |
0.0143 |
|
2 |
26/0.32 |
0.6 |
3.1 |
0.00881 |
|
3 |
41/0.32 |
0.7 |
3.8 |
0.00559 |
|
5 |
65/0.32 |
0.8 |
4.6 |
0.00352 |
|
8 |
50/0.45 |
0.9 |
5.5 |
0.00232 |
|
15 |
84/0.45
|
1.1 |
7.0 |
0.00138 |
|
20 |
41/0.8 |
1.1 |
8.2 |
0.000887 |
|
30 |
70/0.8 |
1.4
|
10.8 |
0.000520 |
|
40 |
85/0.8 |
1.4 |
11.4 |
0.000428 |
|
50 |
108/0.8 |
1.6 |
13.0 |
0.000337 |
|
60 |
127/0.8 |
1.6 |
13.6 |
0.000287 |
|
85 |
169/0.8 |
2.0 |
16.0 |
0.000215 |
|
100 |
217/0.8 |
2.0 |
17.6 |
0.000168 |
|
| KS-9027 PVC Auto Cable BS6862 AUTO CABLE |
|
SIZE:
0.65MM2/1.0MM2/1.5MM2/2.0MM2/2.5MM2/ 3.0MM2/4.5MM2/6.0MM2
COLOR:RED/ORANGE/YELLOW/GREEN/BLUE/PINK/WHITE/ BROWN/BLACK |
| 12 COLOR AVAILABLE |
|
|
|
|
|
