LAN CABLE TESTING DATA SHEET
UTP CATEGORY 5E 350MHZ 100£[
ELECTRICAL PERFORMANCE
| FREQUENCY |
ATTENUATION, MAX.
(DB/100M) |
NEXT
(DB) |
PS NEXT
(DB) |
ELFEXT
(DB) |
PS ELFEXT
(DN) |
RETURN LOSS
(DB/100M) |
1.0MHZ
4.0MHZ
10.0MHZ
16.0MHZ
20.0MHZ
31.25MHZ
62.5MHZ
100.0MHZ
155.0MHZ
200.0MHZ
250.0MHZ
300.0MHZ
350.0MHZ |
2.00
4.10
6.50
8.20
9.20
11.70
17.00
22.00
25.60
29.10
33.20
37.00
40.80 |
65
56
50
47
46
43
38
35
32.8
31.1
29.6
28.5
27.5 |
62
53
47
44
43
40
35
32
32.8
31.1
29.6
28.5
27.5 |
64
52
44
40
38
34
28
24
20.2
18
16.1
14.5
13.2 |
61
49
41
37
35
31
25
21
17.2
15
13.1
11.5
10.3 |
20.00
23.01
25.00
25.00
25.00
23.64
21.54
20.11
18.77
18.00
17.32
16.77
16.30 |
UTP CATEGORY 6 - TEST 250MHZ 100£[
ELECTRICAL PERFORMANCE
| FREQUENCY |
ATTENUATION, MAX.
(DB/100M) |
NEXT
(DB) |
PS NEXT
(DB) |
ELFEXT
(DB) |
RETURN LOSS
(DB/100M) |
1.0MHZ
4.0MHZ
10.0MHZ
16.0MHZ
20.0MHZ
31.25MHZ
62.5MHZ
100.0MHZ
155.0MHZ
200.0MHZ
250.0MHZ
300.0MHZ
|
1.90
3.70
5.90
7.50
8.40
10.60
15.40
19.80
25.15
29.00
32.80
36.40
|
74
65
59
56
55
52
47
44
43
40
38
37
|
72
63
57
54
53
50
45
42
41
38
36
35
|
68
56
48
44
42
38
32
28
24
22
20
18
|
20.00
23.01
25.00
25.00
25.00
23.64
21.54
20.11
18.77
18.00
17.32
|
SFTP CATEGORY 5E - TEST 100MHZ 100£[
ELECTRICAL PERFORMANCE
| FREQUENCY |
ATTENUATION, MAX.
(DB/100M) |
NEXT
(DB) |
PS NEXT
(DB) |
ELFEXT
(DB) |
PS ELFEXT
(DN) |
RETURN LOSS
(DB/100M) |
1.0MHZ
4.0MHZ
10.0MHZ
16.0MHZ
20.0MHZ
31.25MHZ
62.5MHZ
100.0MHZ
|
2.00
4.10
6.50
8.20
9.20
11.70
17.00
22.00
|
65
56
50
47
46
43
38
35
|
62
53
47
44
43
40
35
32
|
64
52
44
40
38
34
28
24
|
61
49
41
37
35
31
25
21
|
20.00
23.01
25.00
25.00
25.00
24.30
21.50
20.01
|
FTP CATEGORY 6 - TEST 250MHZ 100£[
ELECTRICAL PERFORMANCE
| FREQUENCY |
ATTENUATION, MAX.
(DB/100M) |
NEXT
(DB) |
PS NEXT
(DB) |
ELFEXT
(DB) |
RETURN LOSS
(DB/100M) |
1.0MHZ
4.0MHZ
10.0MHZ
16.0MHZ
20.0MHZ
31.25MHZ
62.5MHZ
100.0MHZ
155.0MHZ
200.0MHZ
250.0MHZ
300.0MHZ
|
1.90
3.70
5.90
7.50
8.40
10.60
15.40
19.80
25.15
29.00
32.80
36.40
|
74
65
59
56
55
52
47
44
43
40
38
37
|
72
63
57
54
53
50
45
42
41
38
36
35
|
68
56
48
44
42
38
32
28
24
22
20
18
|
20.00
23.01
25.00
25.00
25.00
23.64
21.54
20.11
18.77
18.00
17.32
|
FTP CATEGORY 5E TEST 100MHZ 100£[
ELECTRICAL PERFORMANCE
| FREQUENCY |
ATTENUATION, MAX.
(DB/100M) |
NEXT
(DB) |
PS NEXT
(DB) |
ELFEXT
(DB) |
PS ELFEXT
(DN) |
RETURN LOSS
(DB/100M) |
1.0MHZ
4.0MHZ
10.0MHZ
16.0MHZ
20.0MHZ
31.25MHZ
62.5MHZ
100.0MHZ
|
2.00
4.10
6.50
8.20
9.20
11.70
17.00
22.00
|
65
56
50
47
46
43
38
35
|
62
53
47
44
43
40
35
32
|
64
52
44
40
38
34
28
24
|
61
49
41
37
35
31
25
21
|
20.00
23.00
25.00
25.00
25.00
24.30
21.50
20.01
|
UTP CATEGORY 3 - TEST 16MHZ 100£[
ELECTRICAL PERFORMANCE
| FREQUENCY |
ATTENUATION, MAX.
(DB/100M) |
NEXT
(DB) |
ACR
(DB) |
1.0MHZ
4.0MHZ
8.0MHZ
10.0MHZ
16.0MHZ
|
2.60
5.60
8.50
9.80
13.10
|
41
32
28
26
23
|
38
26
19
16
10 |
|

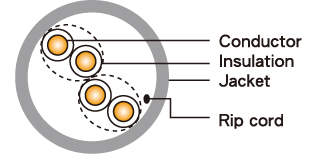

| KS-0003 UTP CAT.3 LAN CABLE 24AWG |
|
1/0.515MM BC X 2 PAIR TWISTED
+ PVC O.D. 3.9MM
COLOR : GREY / IVORY / WHITE |
| CAT.3 STANDARD |
|
|
|

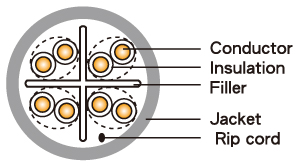

| UTP-C5E UTP CAT.5E LAN CABLE 24AWG |
1/0.515MM BC SOLID X 4 PAIR TWISTED
+ PVC JACKET
COLOR : GREY / RED / BLUE / GREEN / YELLOW |
| SPEED ENHANCED |
|
|
|

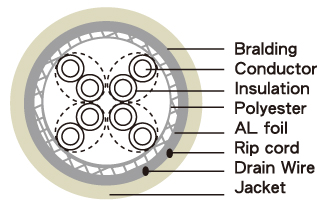

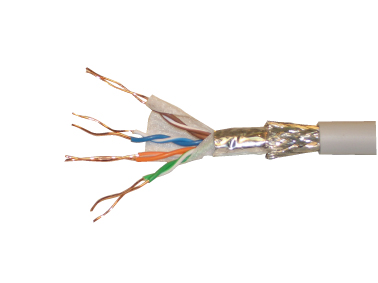

| FTP-C5E FTP CAT.5E LAN CABLE 24AWG |
1/0.515MM BC SOLID X 4 PAIR TWISTED
+ALUMINIUM MYLAR FOIL+DRAIN WIRE
+PVC JACKET
COLOR:GREY/RED/GREEN/YELLOW |
| 250MHZ |
|
|
|

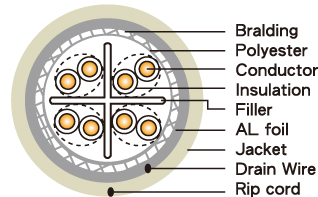

| SFTP-C5E SFTP CAT.5E LAN CABLE 24AWG |
1/0.515MM BC SOLID X 4 PAIR TWISTED
+ ALUMINIUM MYLAR FOIL + DRAIN WIRE
+ TINNED COPPER BRAID(90%)
+ PVC JACKET
COLOR : GREY / RED / GREEN / YELLOW |
| AAA TOP QUALITY |
|
|
|
| UTP-C6 UTP CAT.6 LAN CABLE 23AWG |
1/0.57MM BC SOLID X 4 PAIR TWISTED
+ PE CROSS
+ PVC JACKET
COLOR : GREY / RED / BLUE / GREEN / YELLOW |
| 600MHZ |
|
|
|
| FTP-C6 FTP CAT.6 LAN CABLE 23AWG |
|
1/0.57MM BC SOLID X 4 PAIR TWISTED
+ PE CROSS
+ ALUMINIUM MYLAR FOIL + DRAIN WIRE
+ PVC JACKET
COLOR : GREY / RED / BLUE / GREEN / YELLOW |
| 550MHZ |
|
|
|
| KS-0006 UTP CAT.5 LAN CABLE 24 AWG |
|
1/0.515MM BC X PAIR TWISTED INDOOR USE
SIZE : 25 PAIRS / 50 PAIRS / 100 PAIRS / 200 PAIRS / 300 PAIRS
COLOR : GREY / IVORY / WHITE |
| MAX. 300 PAIRS |
|
|
|
| KS-0005 TELEPHONE CABLE |
|
1/0.515MM BC INDOOR USE WITH PVC JACKET
SIZE : 2 CORES ~ 200 CORES
1 PAIR ~ 100 PAIRS
COLOR : GREY / IVORY / WHITE
|
| ECONOMIC |
|
|
|
| KS-009 UTP CAT.5E + SELF-SUPPORT |
1/0.515MM BC SOLID X 4 PAIR TWISTED
+ PE JACKET + STEEL WIRE SELF SUPPORT
COLOR : BLACK |
| OUTDOOR TYPE |
|
|
|

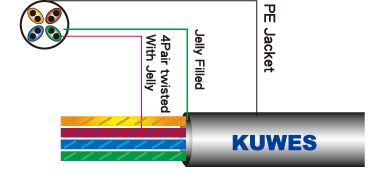

| UTP-C5E-Jelly JELLY-FILLED LAN CABLE |
1/0.515MM BC SOLID X 4 PAIR TWISTED
+ JELLY FILLED
+ BLACK JACKET PE
COLOR : BLACK |
| WATEPROOF |
|
|
|

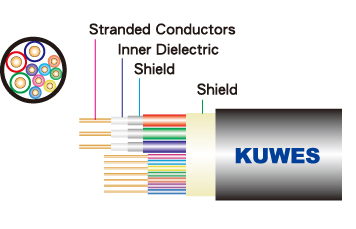

| KS-3R8C SVGA CABLE 28AWG 75OHM |
7/0.127MM TC RGB TYPE COAXIAL X 3 CORE
+ 7/0.127MM TC SIGNLE WIRE X 8 CORE
+ ALUM.MYLAR
+ 95% TC BRAID COVERAGE
+ BLACK PVC 8.2MM |
| SUPERIOR QUALITY |
|
|
|

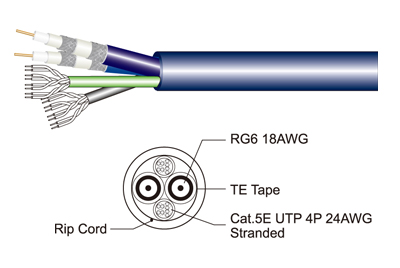

| KS-8025.KS-8026 Composite cable(smart cable) |
KS-8025:RG-6 QUAD*2 + UTP CAT.5E X 2
KS-8026:RG-6 QUAD + UTP CAT.5E
COLOR:BLUE/GREEN |
| TOP QUALITY |
|
|
|
|
|
